Auxiliary Contact 2NO 2NC | 690V Insulation | Top Mount by NHP
Auxiliary contact with 2NO and 2NC contacts, rated for 690V insulation—ideal for industrial control circuits and commercial machinery. Built for versatile control, with top mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

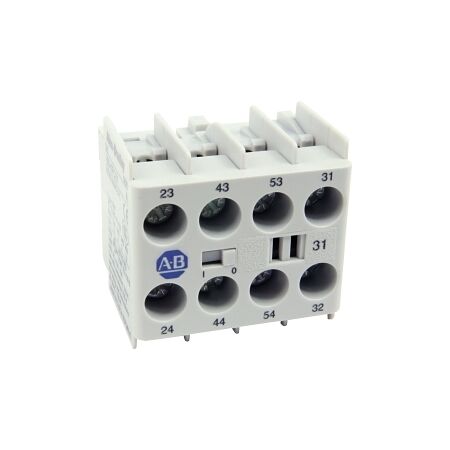

Product Name/Title: Allen-Bradley 100K Auxiliary Contact with 2NO Contacts and 2NC Contact Front Mount
Brand: NHP
SKU: 100KFC22
Alternatively Known As: Auxiliary Contact Block, Mini Auxiliary Contact
Technical Specifications
- Number of Contacts: 2NO + 2NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current (AC 15) at 240 V: 2 A
- Rated Operation Current (AC 15) at 400 V: 1.2 A
- Rated Operation Current (DC 13) at 24 V: 2.3 A
- Mounting Method: Top mounting
- Dimensions (H x L x W): 100mm x 75mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts for versatile control options.
- Rated insulation voltage of 690 V for high-performance applications.
- Top mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control circuits, automation systems
- Commercial: Machinery, equipment control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency and reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100K Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial applications.
