Auxiliary Contact 2NO | 690V Insulation | Top Mount by NHP
Auxiliary contact with 2 normally open contacts and 690V rated insulation—ideal for industrial control systems and commercial electrical panels. Built for reliability, with top mounting for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

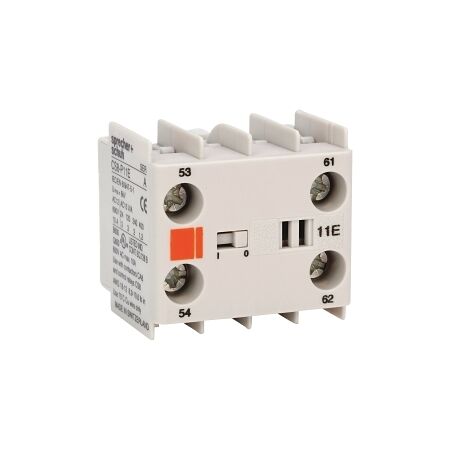

Product Name/Title: S+S CS8 Auxiliary Contact with 2NO Contacts
Brand: NHP
SKU: CS8P20E
Alternatively Known As: Auxiliary Contact Block, Control Relay Contact
Technical Specifications
- Number of Contacts: 2 NO
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 24 V: 3 A
- Rated Operation Current at AC 15 120 V: 3 A
- Rated Operation Current at AC 15 240 V: 2 A
- Rated Operation Current at AC 15 400 V: 1.2 A
- Rated Operation Current at DC 13 24 V: 2.3 A
- Rated Operation Current at DC 13 110 V: 0.55 A
- Rated Operation Current at DC 13 220 V: 0.27 A
- Min Contact Rating Current: 2 mA
- Min Contact Rating Voltage: 15 V
- Mounting Method: Top mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.5 kg
Key Features
- Mini auxiliary contact with 2 normally open contacts.
- Rated insulation voltage of 690 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control systems, automation equipment
- Commercial: Electrical panels, machinery control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient design contributes to reduced energy consumption in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS8 Auxiliary Contact with 2NO Contacts is available now for immediate purchase. Ideal for industrial and commercial control applications.
