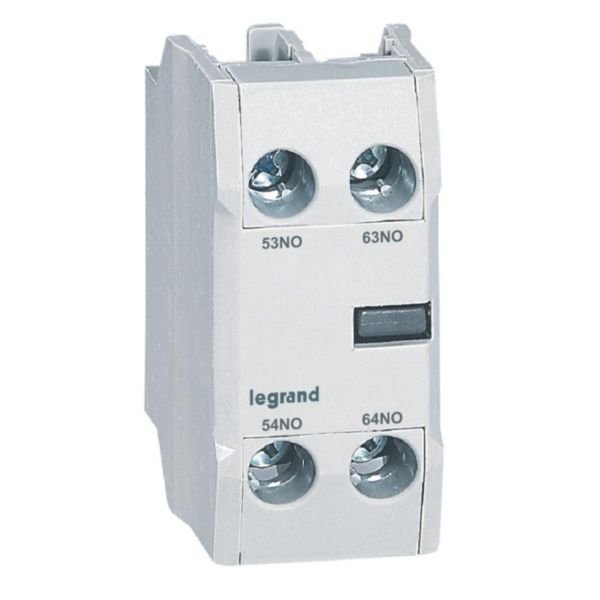

Auxiliary Contact 2NO for CTX3 | Front Mounting | 2 Normally Open Contacts | 24V DC Minimum Switching | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416851
$20.00 List price: $24.90
+ −
30 Days Return Delivery Options
The Auxiliary Contact 2NO for CTX3 is designed for reliable motor control and protection, featuring two normally open contacts and a minimum switching voltage of 24V DC. Ideal for front mounting on CTX3 contactors ranging from 9A to 150A and 40A to 135A, this unit ensures easy installation and compliance with environmental standards, making it perfect for industrial applications.

Product Name/Title: Auxiliary Contact 2NO for CTX3 | Front Mounting | 2 Normally Open Contacts | 24V DC Minimum Switching | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416851

Alternatively Known As: Auxiliary contact 2NO, CTX3 auxiliary contact, front mounting auxiliary contact, motor contactor auxiliary contact

Technical Specifications
  • Number of contacts as normally open contact: 2
  • Number of contacts as normally closed contact: 0
  • Number of change-over contacts: 0
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Screw connection terminals
  • Clip-on front fastening mounting method
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Screw terminals capacity: 2 x 1mm² to 2.5mm²
  • Dimensions (H x L x W): 60mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • 2 Normally Open (2NO) auxiliary contact unit with Ith = 16A
  • Screw terminals capacity: 2 x 1mm² to 2.5mm²
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Clip-on model for easy front mounting on CTX3 contactors
  • Designed with environmentally conscious processes and substance-restriction compliance
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following product instructions and safety standards.
Applications
  • Tertiary and industrial motor control and protection installations
  • Front mounting on CTX3 3P contactors from 9A to 150A
  • Front mounting on CTX3 4P contactors from 40A to 135A
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed in an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Legrand Auxiliary Contact 2NO for CTX3 3P and 4P is available for immediate purchase, ideal for industrial and tertiary motor control applications.
