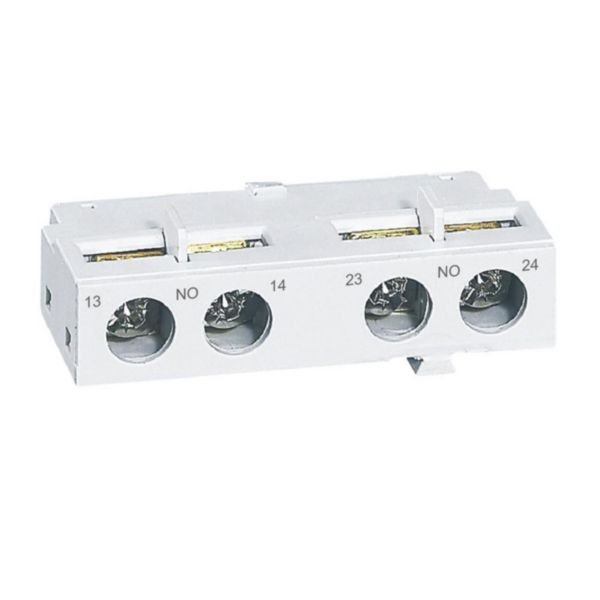

Auxiliary Contact 2NO for MPX3 | Front Mounting | Clip-On Design | 5A Rated | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417404
$40.70 List price: $50.70
+ −
30 Days Return Delivery Options
The Auxiliary Contact 2NO for MPX3 is designed for reliable control in tertiary and industrial electrical installations. Featuring a front mounting clip-on design and rated for 5A at 40°C, this unit is perfect for switchboards and power cabinets. With screw terminals accommodating 0.5mm² to 2.5mm² wires, it ensures easy installation and compatibility with various MPX3 models.

Product Name/Title: Auxiliary Contact 2NO for MPX3 | Front Mounting | Clip-On Design | 5A Rated | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417404

Alternatively Known As: Auxiliary contact 2 normally open, MPX3 auxiliary contact, front mount auxiliary contact, Legrand MPX3 contact accessory

Technical Specifications
  • Number of normally open contacts: 2
  • Number of normally closed contacts: 0
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Type of electric connection: Screw connection
  • Mounting method: Front fastening
  • Model: Clip-on
  • Ith = 5A at 40°C / 3A at 60°C
  • Dimensions (H x L x W): 60mm x 30mm x 45mm
  • Weight: 0.1 kg
Key Features
  • 2NO auxiliary contact unit with Ith = 5A at 40°C / 3A at 60°C
  • Rated supply current AC-15: 4A / 240V
  • Rated supply current DC-13: 1A / 24V and 0.1A / 220V
  • Screw terminals capacity: 2x 0.5mm² to 2.5mm²
  • Compatible with MPX3 32S/H/MA, MPX3 63H, MPX3 100H
  • Front mounting clip-on design
  • Environmentally conscious manufacturing process
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following product instructions and safety standards.
Applications
  • Tertiary and industrial electrical installations
  • Control and signalling in switchboards and power cabinets
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance
  • Manufactured through an environmentally conscious process
Warranty Information

Standard Legrand warranty applies, typically 2 years against manufacturing defects.

Available Now

Legrand Auxiliary Contact 2NO for MPX3 is available for immediate purchase, ideal for tertiary and industrial electrical control applications.
