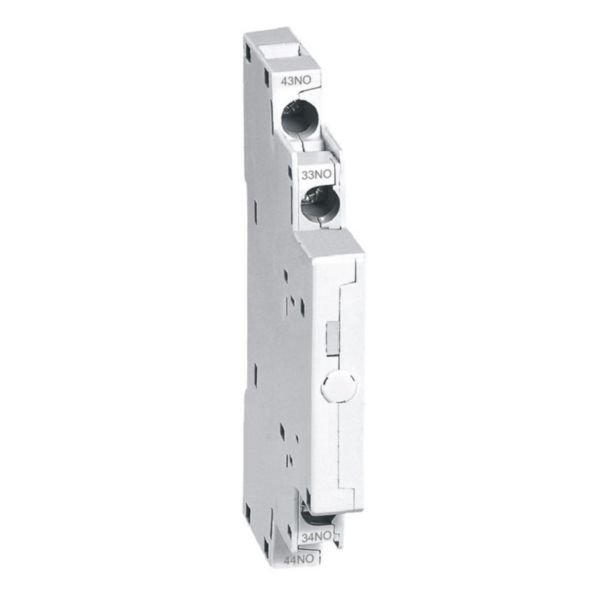

Auxiliary Contact 2NO for MPX3 | Side Mounting | Clip-On Design | 10A Rated Current | @EA of 1 | by Legrand
The Auxiliary Contact 2NO for MPX3 is designed for reliable electrical control in tertiary and industrial applications. Featuring a clip-on design for side mounting, this unit supports a rated current of 10A at 40°C, making it ideal for switchboards and power cabinets. With screw terminals accommodating 0.5mm² to 2.5mm² wires, it ensures easy installation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 2NO for MPX3 | Side Mounting | Clip-On Design | 10A Rated Current | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417401
Alternatively Known As: Auxiliary contact 2 normally open, MPX3 side mount auxiliary contact, Legrand MPX3 auxiliary contact
Technical Specifications
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Mounting method: Side mounting (left side of breaker)
- Model: Clip-on
- Screw terminals capacity: 2x 0.5mm² to 2.5mm²
- Dimensions (H x L x W): 60mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- 2NO auxiliary contact unit with rated current Ith = 10A at 40°C / 6A at 60°C
- Rated supply current AC-15: 6A at 24V, 4A at 240V
- Rated supply current DC-13: 2A at 24V, 0.25A at 220V
- Screw terminals capacity: 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA, MPX3 63H, MPX3 100H
- Clip-on model with side mounting on the left side of the breaker
- Designed with environmentally conscious processes and substance-restriction compliance
Professional Installation Requirements
- Installation should be performed by a qualified electrician following product instructions and safety standards.
Applications
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Designed with substance-restriction compliance to reduce hazardous materials
- Manufactured using environmentally conscious processes
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Auxiliary Contact 2NO for MPX3 side mounting is available for immediate purchase, ideal for tertiary and industrial electrical control applications.
