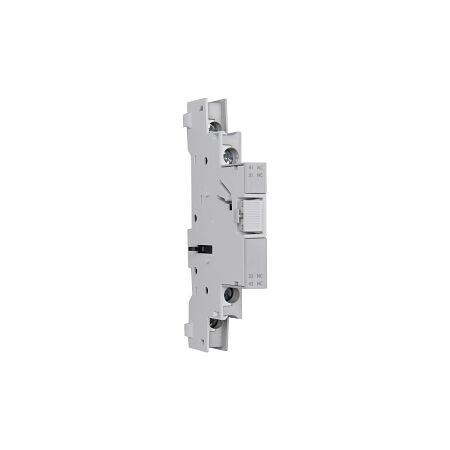

Auxiliary Contact 2NO | Side Mount | 690V Rated | NHP KT9PA120 by NHP
Auxiliary contact with 2 normally open contacts and side mounting—ideal for motor protection and equipment control. Built for industrial and commercial use, offering reliable operation and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S+S KT9 Auxiliary Contact with 2NO Contact Side Mount
Brand: NHP
SKU: KT9PA120
Alternatively Known As: KT9 Auxiliary Contact, Motor Protection Auxiliary Contact
Technical Specifications
- Number of Contacts: 2 NO
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 24 V: 6 A
- Rated Operation Current at AC 15 120 V: 5 A
- Rated Operation Current at AC 15 240 V: 3 A
- Rated Operation Current at AC 15 400 V: 2 A
- Rated Operation Current at DC 13 24 V: 2 A
- Rated Operation Current at DC 13 125 V: 0.55 A
- Rated Operation Current at DC 13 250 V: 0.27 A
- Mounting Method: Side mounting
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 Normally Open (NO) contacts for reliable operation.
- Side mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection applications
- Commercial: Equipment control and automation
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances equipment longevity by providing reliable protection.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Auxiliary Contact with 2NO Contact Side Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
