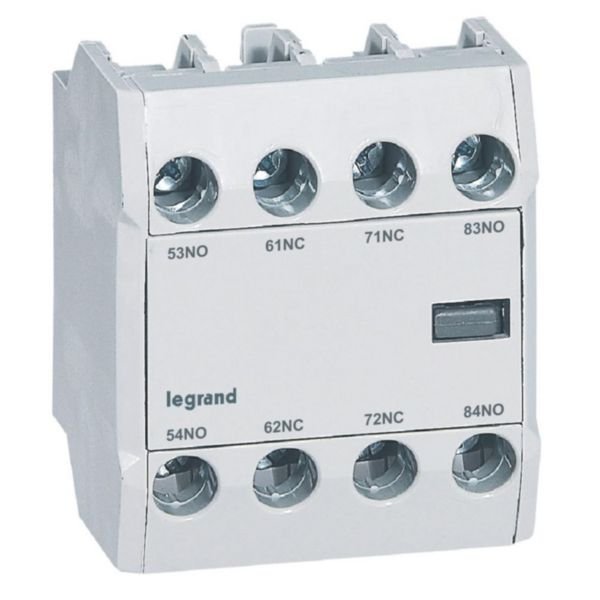

Auxiliary Contact 2NO2NC for CTX3 | Front Mounting | 16A Rated | Easy Installation | @EA of 1 | by Legrand
The Auxiliary Contact 2NO2NC for CTX3 is designed for reliable motor control in industrial applications, featuring a front mounting design for easy installation. With a rated operation current of 16A and screw terminals accommodating 2 x 1mm² to 2.5mm², this contact unit is perfect for CTX3 3P contactors from 9A to 150A and 4P contactors from 40A to 135A, ensuring compliance with AS/NZS 60947-4-1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 2NO2NC for CTX3 | Front Mounting | 16A Rated | Easy Installation | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416855
Alternatively Known As: Auxiliary contact block, 2NO2NC auxiliary contact, CTX3 auxiliary contact, motor contactor auxiliary switch
Technical Specifications
- Number of contacts as normally open contact: 2
- Number of contacts as normally closed contact: 2
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Front fastening
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Dimensions (H x L x W): 60mm x 70mm x 35mm
- Weight: 0.1 kg
Key Features
- 2NO + 2NC auxiliary contact unit with Ith = 16A
- NC auxiliary contact meets mirror contact definition per IEC 60947-4-1
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Clip-on model with front fastening for easy installation
- Rated operation current Ie at AC-15, 230 V: 3 A
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper mounting and electrical connection according to local regulations.
Applications
- Tertiary and industrial motor control and protection installations
- Front mounting on CTX3 3P contactors from 9A to 150A
- Front mounting on CTX3 4P contactors from 40A to 135A
Standards & Compliance
- Complies with AS/NZS 60947-4-1 for low-voltage switchgear and control gear - contactors and motor starters
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
Legrand Auxiliary Contact 2NO2NC for CTX3 3P and 4P is available for immediate purchase, ideal for industrial and tertiary motor control applications.
