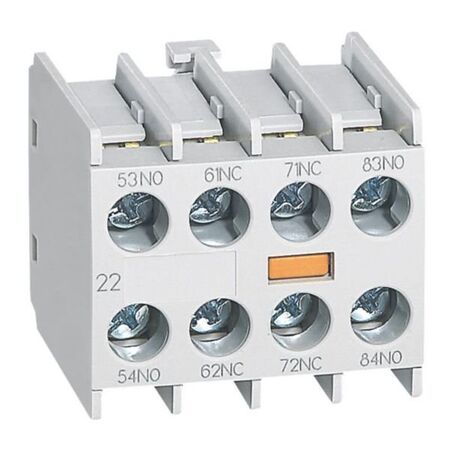

Auxiliary Contact 2NO2NC for CTX3 Mini Relays | Front Mounting | 10A Rated | by Legrand
The Auxiliary Contact 2NO2NC for CTX3 mini relays is designed for efficient motor control and protection. With 2 Normally Open and 2 Normally Closed contacts, it supports a rated operation current of 10A and a minimum switching voltage of 24V DC. Ideal for tertiary and industrial electrical installations, this clip-on model ensures easy front mounting and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 2NO + 2NC auxiliary contact unit with Ith = 10A
- NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
- Screw terminal capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Mounting method: Front fastening
- Model: Clip-on
- Dimensions (H x L x W): 60mm x 20mm x 45mm
- Weight: 0.1 kg
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contacts
- NC auxiliary contact meets mirror contact definition per IEC 60947-4-1
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Rated operation current Ie at AC-15, 230 V: 3 A
- Clip-on model with front fastening for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial electrical installations
- Motor control and protection systems
- Use with CTX3 mini contactors and control relays
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
Available for immediate purchase, ideal for tertiary and industrial motor control and protection applications.
