Auxiliary Contact 3NO 1NC | Top Mount | 690V Rated by NHP
Auxiliary contact with 3NO and 1NC configuration—ideal for industrial and commercial control systems. Built for easy top mounting, with 690V insulation voltage for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

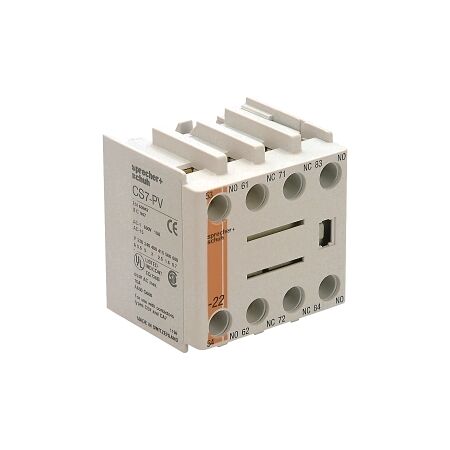

Product Name/Title: S+S CS7 Auxiliary Contact with 3NO Contacts and 1NC Contact Top Mount
Brand: NHP
SKU: CS7PV31
Alternatively Known As: CS7 Auxiliary Contact, Control Relay Contact Block
Technical Specifications
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (various voltages): 3 A to 6 A
- Rated operation current at DC (various voltages): 0.55 A to 12 A
- Minimum contact rating: 5 mA at 17 V
- Mounting method: Top mounting
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- 3 Normally Open (NO) contacts and 1 Normally Closed (NC) contact.
- Top mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control systems, automation equipment
- Commercial: Electrical panels, machinery control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient operation reduces energy consumption in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Auxiliary Contact with 3NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
