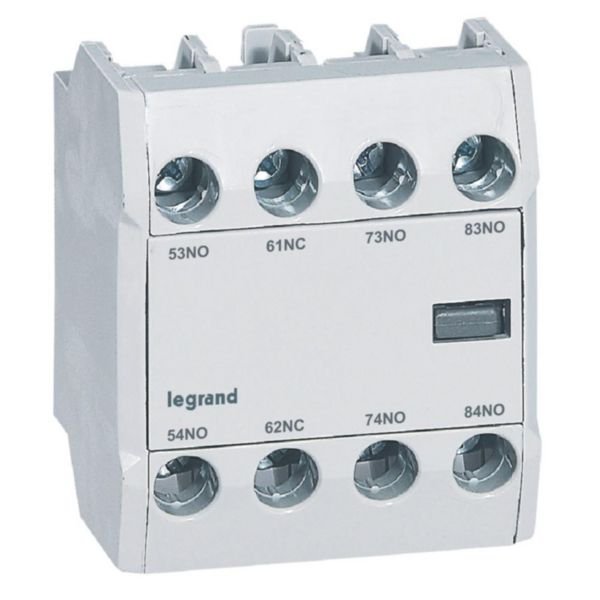

Auxiliary Contact 3NO1NC for CTX3 | Front Mounting | 3A Rated Current | Clip-On Design | @EA of 1 | by Legrand
The Auxiliary Contact 3NO1NC for CTX3 is designed for reliable motor control, featuring 3 normally open and 1 normally closed contact. Ideal for industrial and tertiary applications, this clip-on model ensures easy front mounting on CTX3 contactors, supporting rated operation currents of up to 3A at 230V AC. With environmentally conscious design, it meets stringent safety standards for electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 3NO1NC for CTX3 | Front Mounting | 3A Rated Current | Clip-On Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416854
Alternatively Known As: Auxiliary contact block, 3NO1NC auxiliary contact, CTX3 auxiliary contact, motor contactor auxiliary switch
Technical Specifications
- Number of contacts as normally open contact: 3
- Number of contacts as normally closed contact: 1
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Mounting method: Front fastening
- Model: Clip-on
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Dimensions (H x L x W): 60mm x 30mm x 45mm
- Weight: 0.1 kg
Key Features
- 3 Normally Open (NO) + 1 Normally Closed (NC) auxiliary contact unit
- NC auxiliary contact meets mirror contact definition per IEC 60947-4-1
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Clip-on model with front mounting on CTX3 contactors
- Rated operation current Ie at AC-15, 230 V: 3 A
- Environmentally conscious design complying with substance-restriction requirements
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control equipment and electrical safety standards.
Applications
- Tertiary and industrial motor control and protection installations
- Use with CTX3 3P contactors from 9A to 150A
- Use with CTX3 4P contactors from 40A to 135A
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with environmentally conscious processes and complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
Legrand Auxiliary Contact 3NO1NC for CTX3 3P and 4P is available for immediate purchase, ideal for industrial and tertiary motor control applications.
