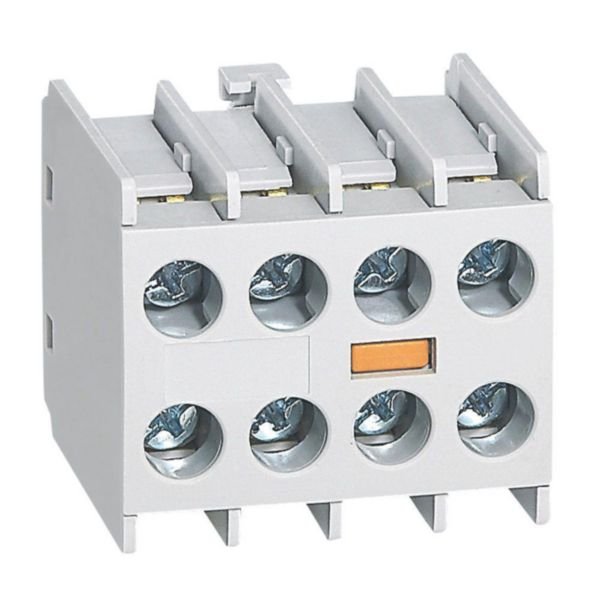

Auxiliary Contact 4NC for CTX3 Mini Relays | 3A Rated Current | Screw Terminal Connection | Clip-On Front Mount | @EA of 1 | by Legrand
The Auxiliary Contact 4NC for CTX3 mini relays features four normally closed contacts and a rated operational current of 3A at AC-15, making it ideal for motor control and protection systems. Designed for front mounting with a screw terminal connection, it supports wiring from 1.5mm² to 2mm², ensuring reliable performance in industrial and tertiary electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of contacts as normally closed contact: 4
- Rated operational current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Front fastening
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Complies with IEC 60947-4-1 standard
- Dimensions (H x L x W): 60mm x 30mm x 45mm
- Weight: 0.1 kg
Key Features
- 4 Normally Closed (NC) auxiliary contacts
- Rated operational current Ie at AC-15, 230 V: 3 A
- Screw terminal connection supporting 2 x 1.5mm² to 2mm² wiring
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Clip-on model for front mounting on contactors
- Meets IEC 60947-4-1 standard for mirror contacts
- Environmentally conscious design complying with substance-restriction requirements
Professional Installation Requirements
- Installation should be performed by a qualified electrician following product instructions and safety standards.
Applications
- Tertiary and industrial electrical installations
- Motor control and protection systems
- Use with CTX3 mini contactors and control relays
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
Legrand Auxiliary Contact 4NC for CTX3 Mini and Control Relays is available for immediate purchase, ideal for industrial and tertiary motor control applications.
