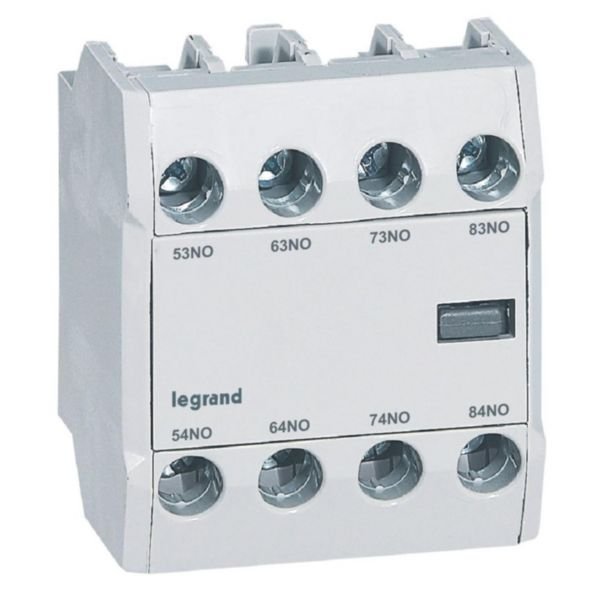

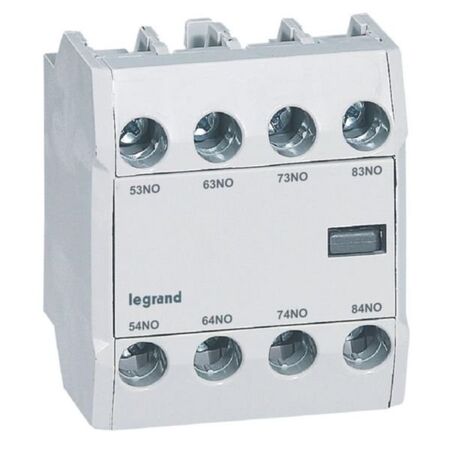

Auxiliary Contact 4NO for CTX3 | Front Mounting | 16A Rated | Screw Terminals | @EA of 1 | by Legrand
The Auxiliary Contact 4NO for CTX3 is designed for seamless integration with CTX3 3P and 4P contactors, providing reliable motor control and protection. With a rated operation current of 16A and front mounting capability, it's perfect for industrial and tertiary applications. This clip-on model features screw terminals for easy installation, ensuring compliance with environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 4NO for CTX3 | Front Mounting | 16A Rated | Screw Terminals | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416853
Alternatively Known As: Auxiliary contact block, 4NO auxiliary contact, CTX3 auxiliary contact, motor contactor auxiliary switch
Technical Specifications
- Number of normally open contacts: 4
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Rated operation current Ie at AC-15, 230 V: 3 A
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Mounting method: Front fastening
- Model type: Clip-on
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.2 kg
Key Features
- 4 Normally Open (4NO) auxiliary contact unit with Ith = 16A
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Front mounting on CTX3 3P and 4P contactors
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Rated operation current Ie at AC-15, 230 V: 3 A
- Clip-on model with screw connection
- Designed with environmentally conscious process and substance-restriction compliance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Tertiary and industrial motor control and protection installations
- Use with CTX3 3P contactors from 9A to 150A
- Use with CTX3 4P contactors from 40A to 135A
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Designed with substance-restriction compliance to reduce environmental impact
- Manufactured using environmentally conscious processes
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.
Available Now
Legrand Auxiliary Contact 4NO for CTX3 3P and 4P front mounting is available for immediate purchase, ideal for industrial and tertiary motor control applications.
