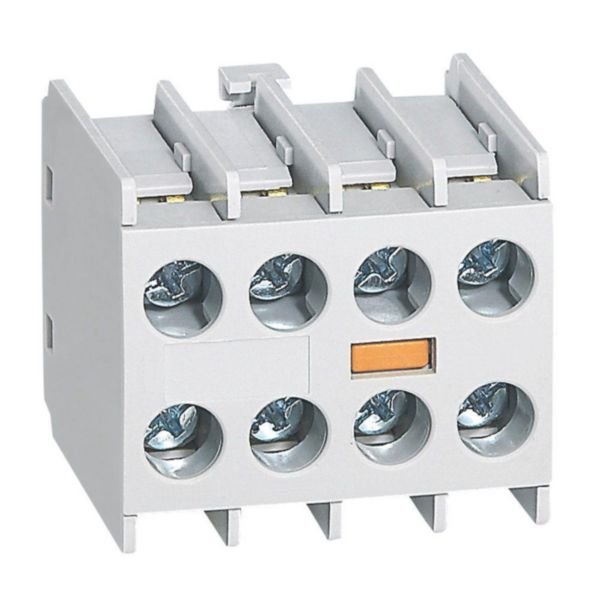

Auxiliary Contact 4NO for CTX3 Mini Relays | 3A Rated Current | Front Mounting | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417153
$31.40 List price: $39.20
1 EA ($31.40 per EA)
+ −
30 Days Return Delivery Options
The Auxiliary Contact 4NO for CTX3 mini relays is designed for reliable motor control and protection, featuring 4 normally open contacts and a rated operational current of 3A at AC-15, 230V. Ideal for tertiary and industrial electrical installations, this clip-on model ensures easy front mounting and compliance with safety standards, making it a perfect choice for qualified electricians.
Technical Specifications
  • Number of contacts (normally open): 4
  • Number of contacts (normally closed): 0
  • Number of change-over contacts: 0
  • Rated operational current Ie at AC-15, 230 V: 3 A
  • Screw terminal capacity: 2 x 1.5mm² to 2mm²
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Mounting method: Front fastening
  • Model type: Clip-on
  • Dimensions (H x L x W): 60mm x 30mm x 45mm
  • Weight: 0.1 kg
Key Features
  • 4 Normally Open (NO) auxiliary contacts
  • Rated operational current Ie at AC-15, 230 V: 3 A
  • Screw terminal connection supporting 2 x 1.5mm² to 2mm² cables
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Clip-on model for front mounting on contactors
  • Designed with environmentally conscious processes and substance-restriction compliance
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following product instructions and safety standards.
Applications
  • Tertiary and industrial electrical installations
  • Motor control and protection systems
  • Use with CTX3 mini contactors and control relays
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed in an environmentally conscious process complying with substance-restriction requirements
Warranty Information

Standard Legrand warranty applies; typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for tertiary and industrial motor control and protection applications.

LE07420AB (LE07420AB.pdf, 4,661 Kb) [Download]

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0280 (ex223001_0280.pdf, 90 Kb) [Download]

ex223001_0281 (ex223001_0281.pdf, 66 Kb) [Download]
