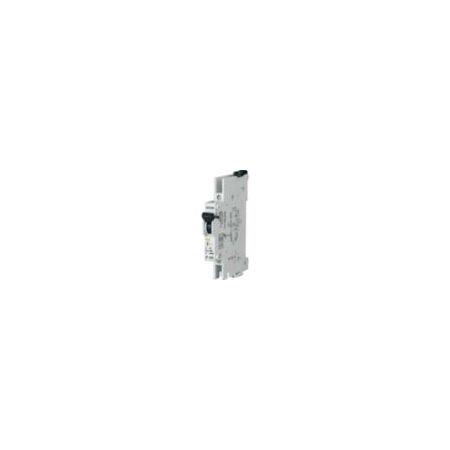

Auxiliary Contact Accessory for Circuit Breakers | 2 Change-Over Contacts | Rated 250V, 4A | Eaton ZP-NHK by Eaton
Eaton's ZP-NHK auxiliary contact accessory features 2 change-over contacts and is rated for 250V and 4A—ideal for industrial and advanced commercial switchgear applications. Built for reliable performance, it ensures compliance with safety standards and is RoHS compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact Accessory for Circuit Breakers | 2 Change-Over Contacts | Rated 250V, 4A | Eaton ZP-NHK by Eaton
Brand: Eaton
SKU: Y7-248437
Alternatively Known As: Auxiliary contact for Eaton circuit breakers, Eaton ZP-NHK contact accessory, Eaton tripping signal contact
Technical Specifications
- Product Name: Eaton Distribution parts
- Catalog Number: 248437
- Number of contacts (change-over contacts): 2
- Number of contacts (normally closed contacts): 0
- Number of contacts (normally open contacts): 0
- Number of poles at main contact unit - max: 2
- Voltage type: AC
- Functions: Auxiliary switch
- Rated operational voltage (Ue) - max: 250 V
- Rated switch current: 4 A
- Suitable for current of main contact unit - max: 4 A
- Mounting method: For fitting on left to LS, FI/LS
- Ambient operating temperature: -5 °C to 55 °C
- Assembly width: 0.5 TE
- Certifications: UL Listed, EN45545-2, IEC 61373
- Compliances: RoHS conform
- Dimensions (H x L x W): 75mm x 80mm x 8.8mm
- Weight: 0.044 kg
Key Features
- Auxiliary contact accessory for miniature circuit breakers and combined residual current/power circuit breakers
- 2 change-over contacts
- Universal device fitting
- Rated operational voltage up to 250 V
- Rated switch current of 4 A
- Mounting method: For fitting on left to LS, FI/LS
- Ambient operating temperature range from -5 °C to 55 °C
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper integration with circuit breakers and compliance with safety standards.
Applications
- Switchgear for industrial and advanced commercial applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton ZP-NHK Auxiliary Contact is available now for immediate purchase. Ideal for industrial and advanced commercial switchgear applications.
