Auxiliary Contact Block 1NO 1NC | 690V Insulation | Compact Design by NHP
Auxiliary contact block with 1NO and 1NC contacts, rated for 690V insulation—ideal for industrial and commercial control circuits. Built for seamless integration with CA9 contactors, offering energy efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

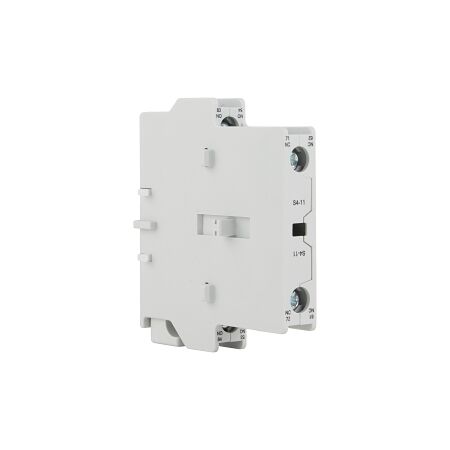

Product Name/Title: S+S CA9 Auxiliary Contact with 1NO Contact and 1NC Contact Inside Position for CA9 116 and 370
Brand: NHP
SKU: CA9S111
Alternatively Known As: Auxiliary Contact Block, CA9 Contact Block
Technical Specifications
- Number of Contacts: 1NO, 1NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 16 A
- Rated Operation Current at AC 15 24 V: 6 A
- Rated Operation Current at AC 15 120 V: 6 A
- Rated Operation Current at AC 15 240 V: 4 A
- Rated Operation Current at AC 15 400 V: 3 A
- Rated Operation Current at DC 13 24 V: 3 A
- Rated Operation Current at DC 13 110 V: 0.55 A
- Rated Operation Current at DC 13 220 V: 0.3 A
- Minimum Contact Rating Current: 50 mA
- Minimum Contact Rating Voltage: 12 V
- Rated Operation Current at AC 15 230 V: 4 A
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Rated insulation voltage of 690 V.
- Compact design for easy integration with CA9 contactors.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Used in conjunction with CA9 contactors for control circuits.
- Commercial: Suitable for various automation and control applications.
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Designed for energy efficiency in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
