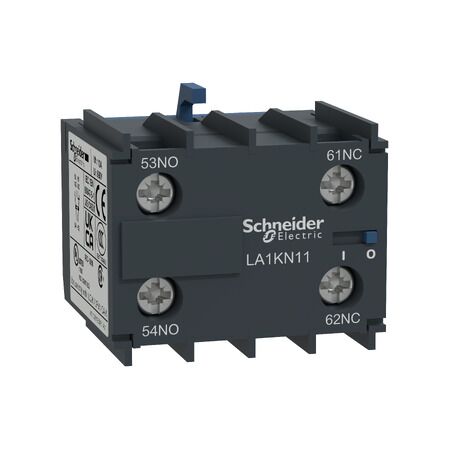

Auxiliary Contact Block 1NO + 1NC | 690V AC | Front Mounting by Clipsal
Auxiliary contact block with 1NO + 1NC contacts and 690V AC rating—ideal for industrial applications. Built for reliability, with front mounting and screw clamp terminals for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys k, Auxiliary Contact Block, TeSys K, 1NO + 1NC, front mounting, screw clamp terminals
Brand: Clipsal
SKU: LA1KN11
Alternatively Known As: TeSys K Contact Block, Auxiliary Contact Block, Instantaneous Contact Block
Technical Specifications
- Rated operational voltage: 690 V AC.
- Rated insulation voltage: 690 V conforming to IEC 60947-5-1.
- Conventional free air thermal current: 10 A (at 50 °C).
- Minimum switching current: 5 mA.
- Minimum switching voltage: 17 V.
- IP degree of protection: IP20 conforming to IEC 60529.
- Dimensions (H x L x W): 30mm x 35mm x 38mm
- Weight: 0.045 kg
Key Features
- 1NO + 1NC contacts rated up to 10A 690V AC.
- Connection by screw clamp terminals for reliable connectivity.
- Front mounting design for easy installation.
- High reliability and durability.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Suitable for use with contactors in various industrial applications.
Standards & Compliance
- Multi standards certified (IEC, UL, CSA, CCC).
Environmental Benefits
- Green Premium compliant (RoHS/REACh).
Warranty Information
Standard warranty applies.
Available Now
The TeSys K Auxiliary Contact Block is available now for immediate purchase. Ideal for industrial applications requiring reliable contact solutions.
