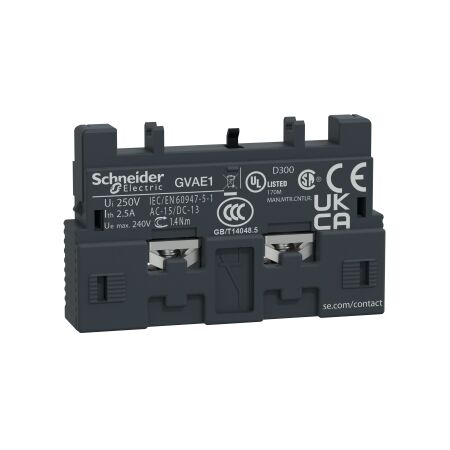

Auxiliary Contact Block 1NO NC Front Mounting 2A 240VAC Clipsal

BRAND: Clipsal
SKU: SCHGVAE1
$50.00 List price: $62.30
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Auxiliary Contact Block NC Front Mounting AC features 24-240V AC, 24.60V DC, 100000 cycles and gG fuse 10A.
Technical Specifications
  • Rated operational voltage: 24...240 V AC, 24...60 V DC.
  • Mechanical durability: 100,000 cycles.
  • Protection type: gG fuse 10 A.
  • Rated insulation voltage: 300 V conforming to UL 508.
  • Conventional free air thermal current: 2.5 A.
  • Minimum switching current: 5 mA.
  • Minimum switching voltage: 17 V.
  • Dimensions (H x L x W): 11mm x 29mm x 45mm
  • Weight: 0.1 kg
Key Features
  • 1NO or 1NC instantaneous auxiliary contacts depending on mounting orientation.
  • Rated for operation up to 2A/240V AC and 1A/60V DC.
  • Front mounting design for easy installation.
  • Connection by screw clamp terminals.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Motor circuit breakers for various applications
Standards & Compliance
  • Multi standards certified (IEC, UL, CSA, CCC, EAC).
Environmental Benefits
  • Green Premium compliant (RoHS/REACh).
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys GV2 Auxiliary Contact Block is available now for immediate purchase. Ideal for industrial applications requiring reliable auxiliary contacts.

GVAE1 (GVAE1, 241 Kb) [Download]
