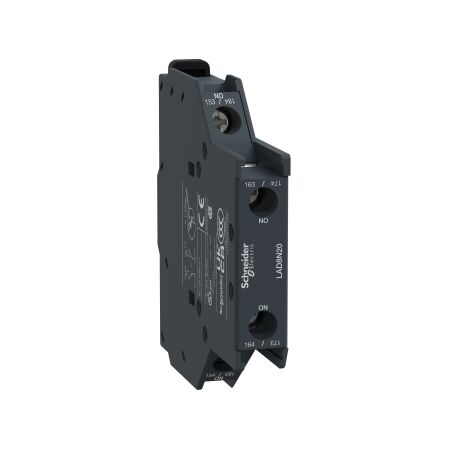

Auxiliary Contact Block 2NO | 10A 690V AC | Side Mounting | Screw Terminals by Clipsal

BRAND: Clipsal
SKU: LAD8N20
$75.70 List price: $113.50
+ −
30 Days Return Delivery Options
Auxiliary contact block with 2NO contacts rated for 10A 690V AC—ideal for industrial applications. Built for high reliability, with easy clip-on side mounting and screw clamp terminals.

Product Name/Title: TeSys D, Auxiliary Contact Block, TeSys Deca, 2NO, side mounting, screw clamp terminals

Brand: Clipsal

SKU: LAD8N20

Alternatively Known As: TeSys Deca Auxiliary Contact, TeSys D Contact Block, Auxiliary Contact Block 2NO

Technical Specifications
  • Rated operational voltage: 690 V AC.
  • Rated operational current: 10 A.
  • Mechanical durability: 30 million cycles.
  • Insulation resistance: > 10 MOhm.
  • IP Rating: IP20 conforming to IEC 60529.
  • Ambient air temperature for operation: -5...60 °C.
  • Dimensions (H x L x W): 76mm x 76mm x 12.5mm
  • Weight: 0.0612 kg
Key Features
  • 2NO contacts rated up to 10A 690V AC.
  • Connection by screw clamp terminals.
  • Clip-on side mounting for easy installation.
  • High reliability and durability.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Industrial: Used with LC.D contactors and CAD control relays in various applications.
Standards & Compliance
  • Complies with IEC, UL, CSA, CCC, EAC standards.
Environmental Benefits
  • Green Premium compliant (RoHS/REACh).
Warranty Information

Standard warranty applies.

Available Now

The TeSys D Auxiliary Contact Block is available now for immediate purchase. Ideal for industrial applications requiring reliable auxiliary contacts.

LAD8N20 (LAD8N20, 219 Kb) [Download]
