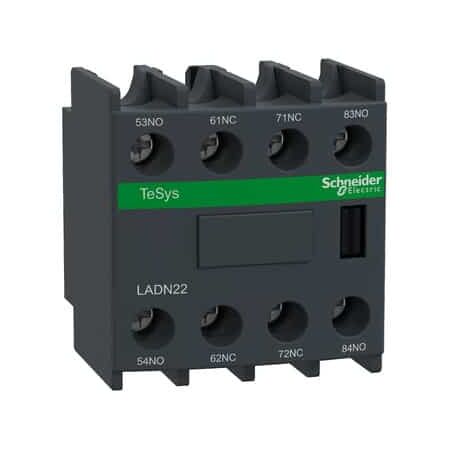

TeSys D, Auxiliary Contact Block, TeSys Deca, 2NO + 2NC, front mounting, screw clamp terminals

Auxiliary Contact Block 2NO + 2NC | 690V 10A | Front Mounting by Clipsal

BRAND: Clipsal

SKU: LADN22

$79.20 List price: $118.90

+ −

30 Days Return Delivery Options

Auxiliary contact block with 2NO + 2NC contacts rated for 690V and 10A—ideal for industrial applications. Built for high reliability, with easy front mounting and screw clamp terminals.

Description
Attachments

Product Name/Title: TeSys D, Auxiliary Contact Block, TeSys Deca, 2NO + 2NC, front mounting, screw clamp terminals

Brand: Clipsal

SKU: LADN22

Alternatively Known As: TeSys Deca Auxiliary Contact Block, TeSys D Contact Block, 2NO 2NC Contact Block

Technical Specifications

Rated operational voltage: 690 V AC
Rated operational current: 10 A
Mechanical durability: 30 million cycles
Insulation resistance: > 10 MOhm
IP Rating: IP20
Ambient air temperature for operation: -5...60 °C
Dimensions (H x L x W): 48mm x 42mm x 44mm
Weight: 0.05 kg

Key Features

Provides 2NO + 2NC contacts rated up to 10A/690V AC.
Connection by screw clamp terminals.
Clip-on front mounting for easy installation.
High reliability and durability.

Professional Installation Requirements

Professional installation is recommended for optimal performance.

Applications

Industrial: Used with contactors LC1D, LC1F and control relays CAD.

Standards & Compliance

Multi standards certified (IEC, UL, CSA, CCC, EAC).

Environmental Benefits

Green Premium compliant (RoHS/REACh).

Warranty Information

Standard warranty applies.

Available Now

The Clipsal TeSys D Auxiliary Contact Block is available now for immediate purchase. Ideal for industrial applications requiring reliable contact solutions.

LADN22 (LADN22, 215 Kb) [Download]
