Auxiliary Contact Block 2NO + 2NC | 690V AC | Front Mounting by Clipsal
Auxiliary contact block with 2NO + 2NC configuration and 690V AC rating—ideal for industrial applications. Built for reliable connections, with front mounting and screw clamp terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

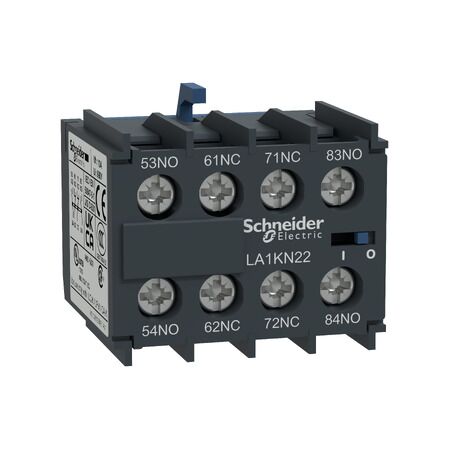

Product Name/Title: TeSys k, Auxiliary Contact Block, TeSys K, 2NO + 2NC, front mounting, screw clamp terminals
Brand: Clipsal
SKU: LA1KN22
Alternatively Known As: TeSys K Contact Block, Auxiliary Contact Block, 2NO 2NC Contact Block
Technical Specifications
- Rated operational voltage: 690V AC
- Rated insulation voltage: 690V
- Conventional free air thermal current: 10A at 50°C
- Insulation resistance: > 10 MOhm
- IP Rating: IP20
- Operating altitude: 2000 m
- Dimensions (H x L x W): 30mm x 35mm x 38mm
- Weight: 0.045 kg
Key Features
- Instantaneous operation with 2NO + 2NC contacts.
- Rated up to 10A at 690V AC.
- Front mounting with clip-on design for easy installation.
- Screw clamp terminals for reliable connections.
- Multi standards certified (IEC, UL, CSA, CCC).
- Green Premium compliant (RoHS/REACh).
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Suitable for use with TeSys contactors in various applications.
Standards & Compliance
- Complies with AS/NZS standards for electrical equipment.
Environmental Benefits
- Green Premium compliant, contributing to reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The TeSys K Auxiliary Contact Block is available now for immediate purchase. Ideal for industrial applications requiring reliable contact solutions.
