Auxiliary Contact Block 2NO 2NC | 690V Insulation | Top Mount by NHP
Auxiliary contact block with 2NO and 2NC contacts, rated for 690V insulation—ideal for industrial automation and control panels. Built for easy top mounting, ensuring reliable performance in commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

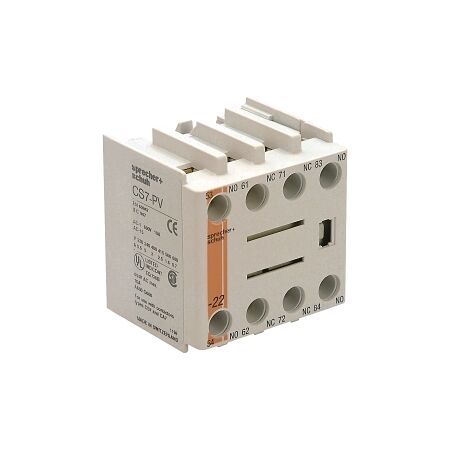

Product Name/Title: S+S CA7 Auxiliary Contact with 2NO Contacts and 2NC Contact
Brand: NHP
SKU: CA7PV22
Alternatively Known As: Auxiliary Contact Block, Contactor Auxiliary Contact
Technical Specifications
- Number of NO contacts: 2
- Number of NC contacts: 2
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (24 V): 6 A
- Rated operation current at AC 15 (120 V): 6 A
- Rated operation current at AC 15 (240 V): 5 A
- Rated operation current at AC 15 (400 V): 3 A
- Rated operation current at DC (12-24 V): 12 A
- Rated operation current at DC (12-110 V): 3.5 A
- Rated operation current at DC (12-220 V): 0.55 A
- Rated operation current at DC (13-24 V): 5 A
- Rated operation current at DC (13-110 V): 1.2 A
- Rated operation current at DC (13-220 V): 0.6 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Rated operation current at AC 15 (230 V): 5.5 A
- Dimensions (H x L x W): 100mm x 75mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts.
- Rated insulation voltage of 690 V.
- Top mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Electrical installations requiring auxiliary contacts
Standards & Compliance
- Complies with relevant Australian electrical standards.
Environmental Benefits
- Designed for energy efficiency in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP S+S CA7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
