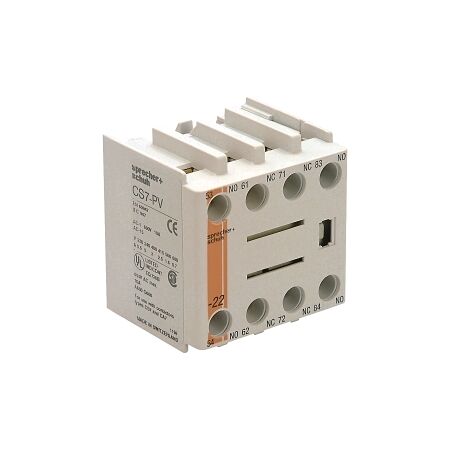

Auxiliary Contact Block 2NO 2NC | 690V Insulation | Top Mount by NHP

BRAND: NHP
SKU: CA7PVS22
$100.00 List price: $132.70
+ −
30 Days Return Delivery Options
Auxiliary contact block with 2NO and 2NC contacts, rated for 690V insulation—ideal for industrial and commercial control systems. Built for easy top mounting, ensuring reliable performance and safety.

Product Name/Title: S+S CA7 Auxiliary Contact with 2NO Contacts and 2NC Contact

Brand: NHP

SKU: CA7PVS22

Alternatively Known As: Auxiliary Contact Block, Contactor Auxiliary Contact

Technical Specifications
  • Number of NO contacts: 2
  • Number of NC contacts: 2
  • Rated insulation voltage: 690 V
  • Rated operation current at 40°C: 10 A
  • Rated operation current at AC 15, 24 V: 6 A
  • Rated operation current at AC 15, 120 V: 6 A
  • Rated operation current at AC 15, 240 V: 5 A
  • Rated operation current at AC 15, 400 V: 3 A
  • Rated operation current at DC 12-24 V: 12 A
  • Rated operation current at DC 12-110 V: 3.5 A
  • Rated operation current at DC 12-220 V: 0.55 A
  • Rated operation current at DC 13-24 V: 5 A
  • Rated operation current at DC 13-110 V: 1.2 A
  • Rated operation current at DC 13-220 V: 0.6 A
  • Minimum contact rating current: 5 mA
  • Minimum contact rating voltage: 17 V
  • Rated operation current at AC 15, 230 V: 5.5 A
  • Mounting method: Top mounting
  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
  • Rated insulation voltage of 690 V.
  • Top mounting method for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Used in various electrical control systems.
  • Commercial: Suitable for automation and control applications.
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CA7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial applications.

CA7PVS22-AU-Contactor-Auxiliary-Contact-Datasheet.pdf (CA7PVS22-AU-Contactor-Auxiliary-Contact-Datasheet.pdf, 378 Kb) [Download]
