Auxiliary Contact Block 2NO 2NC | Top Mount | 690V Rated by NHP
Auxiliary contact block with 2NO and 2NC contacts—ideal for industrial and commercial control systems. Built for easy top mount installation, with 690V insulation voltage for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

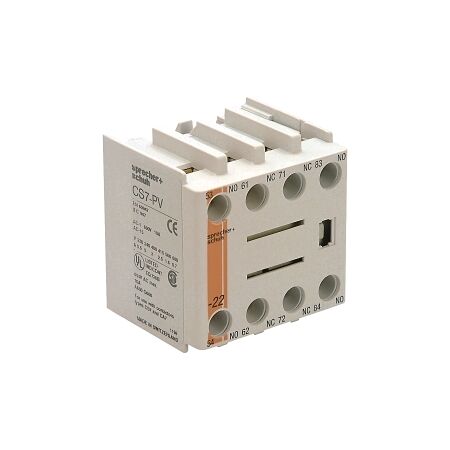

Product Name/Title: S+S CS7 Auxiliary Contact with 2NO Contacts and 2NC Contact Top Mount
Brand: NHP
SKU: CS7PV22
Alternatively Known As: Auxiliary Contact Block, Control Relay Contact, CS7 Contact Block
Technical Specifications
- Number of NO contacts: 2
- Number of NC contacts: 2
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 24 V: 6 A
- Rated operation current at AC 15 120 V: 6 A
- Rated operation current at AC 15 240 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at DC 12-24 V: 12 A
- Rated operation current at DC 12-110 V: 3.5 A
- Rated operation current at DC 12-220 V: 0.55 A
- Rated operation current at DC 13-24 V: 5 A
- Rated operation current at DC 13-110 V: 1.2 A
- Rated operation current at DC 13-220 V: 0.6 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Rated operation current at AC 15 230 V: 5.5 A
- Mounting method: Top mounting
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Top mount design for easy installation.
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control systems, automation equipment
- Commercial: Electrical panels, machinery control
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Designed for efficient operation in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial control applications.
