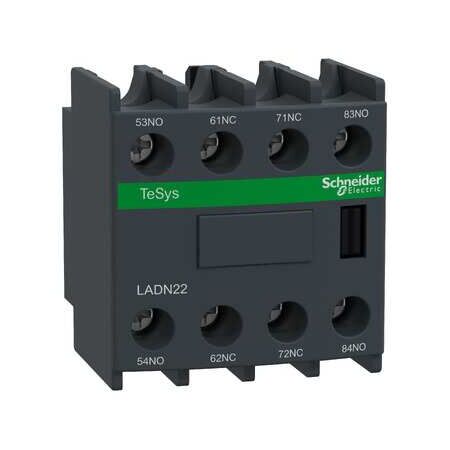

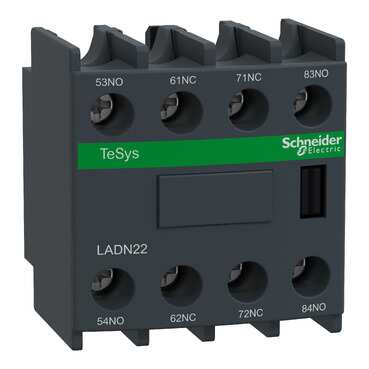

Auxiliary Contact Block TESYS D | 2NO + 2NC Contacts | Snap-On Mounting | by Clipsal
The Auxiliary Contact Block TESYS D features 2 normally open and 2 normally closed contacts, making it ideal for reliable control in industrial applications. Designed for easy snap-on mounting to TeSys D contactors, this block ensures secure wiring with screw clamp terminals. Perfect for motor starters, automation systems, and electrical distribution boards, it offers durability and efficiency in your control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact Block TESYS D | 2NO + 2NC Contacts | Snap-On Mounting | by Clipsal
Brand: Clipsal
SKU: SCHLADN22S
Alternatively Known As: TeSys D Auxiliary Contact Block, SCHLADN22S, 2NO 2NC Auxiliary Block, Schneider Auxiliary Contact Block, Contactor Auxiliary Block
Technical Specifications
- Contact Configuration: 2 NO + 2 NC
- Mounting: Snap-on to TeSys D contactors
- Terminal Type: Screw clamp
- Rated Operational Voltage: 690V AC
- Rated Current: 10A
- Standards: IEC 60947-5-1
- Operating Temperature: -40°C to +70°C
- Mechanical Durability: 10 million cycles
- Dimensions (H x L x W): 50mm x 40mm x 45mm
- Weight: 0.1 kg
Key Features
- Provides 2 normally open (NO) and 2 normally closed (NC) contacts
- Screw clamp terminals for secure wiring
- Easy snap-on mounting to TeSys D contactors
- Reliable auxiliary switching for control circuits
- Compact design for space-saving installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Motor starters
- Automation systems
- Switchboards
- Electrical distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control and automation, reducing unnecessary energy consumption in industrial systems.
- Durable construction minimizes replacement frequency and electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TESYS D Auxiliary Contact Block SCHLADN22S is available for immediate purchase. Ideal for industrial control panels, automation systems, and electrical distribution boards.
