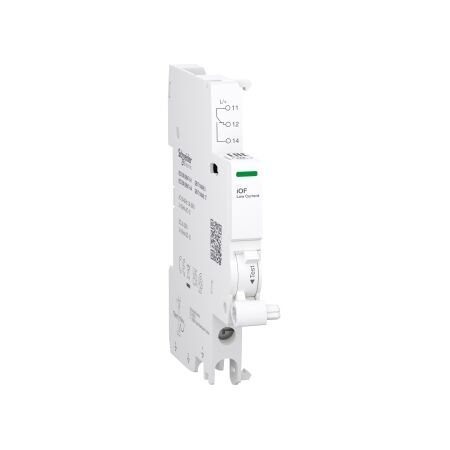

Auxiliary Contact iOF 1 C/O | 2mA-100mA | 24VAC-250VAC | DIN Rail by Clipsal

BRAND: Clipsal
SKU: A9A26914
$51.00 List price: $76.50
+ −
30 Days Return Delivery Options
Auxiliary contact with 1 C/O configuration and 2mA to 100mA current range—ideal for small commercial and critical buildings. Built for versatile applications, with DIN rail mounting and IP20 protection.

Product Name/Title: Acti9, Auxiliary contact, iOF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

Brand: Clipsal

SKU: A9A26914

Alternatively Known As: Acti9 iOF, Auxiliary Contact, Circuit Protection Device

Technical Specifications
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4 kV
  • Signal contacts composition: 1 C/O
  • Pollution degree: 3
  • Tropicalisation: 2
  • Wire stripping length: 10 mm
  • Dimensions (H x L x W): 86mm x 73mm x 9mm
  • Weight: 0.04 kg
Key Features
  • Rated current: 2mA to 100mA
  • Compatible with Acti9 range
  • Clip-on mounting mode
  • DIN rail mounting support
  • IP20 protection rating
  • Operating temperature: -25°C to 70°C
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Small commercial buildings
  • Critical buildings
  • Healthcare
  • Industry
  • Data centers
  • Infrastructures
Standards & Compliance
  • Complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4
Environmental Benefits
  • Packaging made with recycled cardboard
  • Complies with California Proposition 65
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Acti9 Auxiliary Contact iOF is available now for immediate purchase. Ideal for small commercial and critical building applications.

A9A26914 (A9A26914, 211 Kb) [Download]
