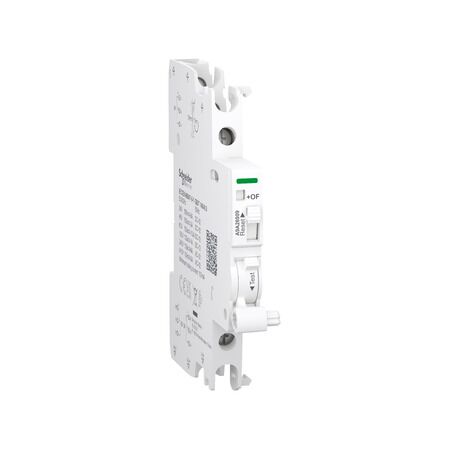

Acti9, Auxiliary contact, iOF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection

Auxiliary Contact iOF/SD+OF | 100mA-6A | 24VAC-415VAC | Top & Bottom Connection by Clipsal

BRAND: Clipsal

SKU: A9A26909

$85.10 List price: $127.60

+ −

30 Days Return Delivery Options

Auxiliary contact with 100mA to 6A range and 24VAC to 415VAC compatibility—ideal for small commercial and industrial applications. Built for reliability, with top and bottom screw clamp terminals and mechanical indicator.

Description
Attachments

Product Name/Title: Acti9, Auxiliary contact, iOF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection

Brand: Clipsal

SKU: A9A26909

Alternatively Known As: Acti9 iOF/SD+OF, Acti9 Auxiliary Contact

Technical Specifications

Rated current: 0.1 to 6 A at 24...240 V AC, 50/60 Hz
Rated current: 0.1 to 3 A at 415 V AC, 50/60 Hz
Rated current: 0.1 to 6 A at 24 V DC
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 4 kV
Pollution degree: 3
Tropicalisation: 2
IP Rating: IP20
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...85 °C
Dimensions (H x L x W): 90mm x 73mm x 9mm
Weight: 0.043 kg

Key Features

Double OC or fault contact
Compatible with Acti9 range
Mechanical indicator for local signaling
Top and bottom screw clamp terminals

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Small commercial buildings
Industrial applications requiring reliable fault contact

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Complies with EN/IEC 60947-5-1 for safety and performance standards.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Acti9 Auxiliary Contact is available now for immediate purchase. Ideal for small commercial buildings and industrial applications.

A9A26909 (A9A26909, 200 Kb) [Download]
