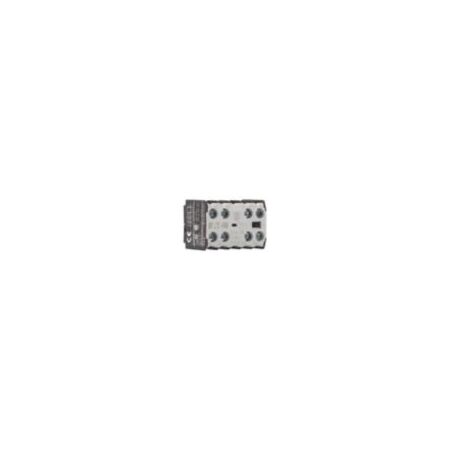

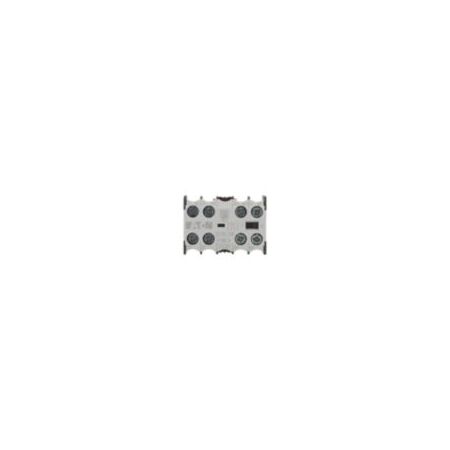

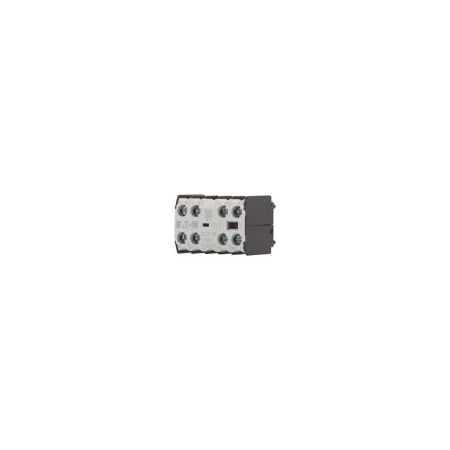

Auxiliary Contact Module 4 Pole | 600V AC | 20 Million Operations | Front Fastening by Eaton
This 4 pole auxiliary contact module features 2 normally open and 2 normally closed contacts, rated for 600V AC and designed for industrial control panels. Built for automation systems, it offers a high mechanical lifespan of up to 20 million operations, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact Module 4 Pole | 600V AC | 20 Million Operations | Front Fastening by Eaton
Brand: Eaton
SKU: Y7-10112
Alternatively Known As: DILEM Auxiliary Contact Module, Eaton DILEM 4 Pole Auxiliary Contact, Auxiliary Contact Block, Electrical Auxiliary Module
Technical Specifications
- Number of poles: 4 (2 N/O, 2 N/C)
- Mounting method: Front fastening
- Electric connection type: Screw connection
- Rated operational voltage (Ue): 600 V AC max
- Rated insulation voltage (Ui): 690 V
- Rated operational current (Ie): 4 A at AC-15, 220-240 V
- Mechanical lifespan: 20,000,000 operations (DC operated)
- Operating frequency: 9000 operations/hour
- Overvoltage category: III
- Pollution degree: 3
- Protection: Finger and back-of-hand proof (EN 50274)
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Shock resistance: 10 g mechanical shock
- Ambient operating temperature: -25 °C to 50 °C
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 1.5) mm²
- Tightening torque: 1.2 Nm
- Dimensions (H x L x W): 32mm x 36mm x 45mm
- Weight: 0.04 kg
Key Features
- Four-pole auxiliary contact module with 2 normally open and 2 normally closed contacts
- Interlocked opposing contacts according to IEC 60947-5-1 Annex L
- Front fixing with screw terminals for secure connection
- Finger and back-of-hand proof protection against direct contact (EN 50274)
- High mechanical lifespan with up to 20,000,000 operations (DC operated)
- Rated operational voltage up to 600 V AC and insulation voltage of 690 V
- Shock resistance compliant with IEC/EN 60068-2-27 standards
- Operating temperature range from -25 °C to 50 °C (enclosed up to 40 °C)
- Rated operational current up to 4 A at AC-15 category
- Safe isolation of 300 V AC between auxiliary contacts and coil
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control panels
- Electrical switchgear assemblies
- Automation systems requiring auxiliary contact monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Complies with international standards ensuring safe and efficient operation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller® series DILEM Auxiliary Contact Module is available for immediate purchase, ideal for industrial and automation electrical control applications.
