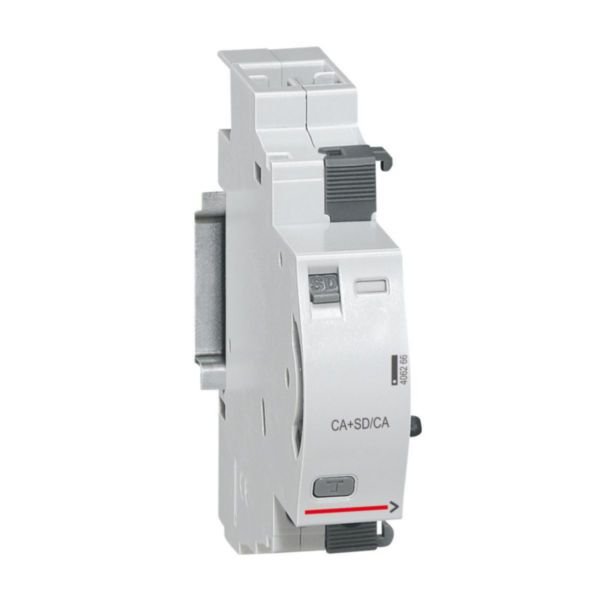

Auxiliary Fault Signalling Changeover Switch DX³ | 6A 250V AC | 1 Module Design | Universal Fitting | @EA of 1 | by Legrand
The Auxiliary Fault Signalling Changeover Switch DX³ is designed for reliable electrical installations, featuring a rated switch current of 6A at 250V AC and a compact 1 module design. Ideal for electrical switchboards and copper distribution systems, this switch ensures efficient fault signalling and monitoring, making it a perfect choice for qualified electricians seeking compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Fault Signalling Changeover Switch DX³ | 6A 250V AC | 1 Module Design | Universal Fitting | @EA of 1 | by Legrand
Brand: Legrand
SKU: 406266
Alternatively Known As: Auxiliary changeover switch, fault signalling switch, DX3 auxiliary switch, Legrand DX3 changeover switch
Technical Specifications
- Width: 17.7 mm
- Height: 84.5 mm
- Depth: 77.7 mm
- Rated switch current: 6 A
- Rated voltage: 240 V AC/DC
- Number of change-over contacts: 2
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Suitable for max number of poles main contact unit: 4
- Suitable for max current main contact unit: 125 A
- Voltage type: AC/DC
- Device fitting: Universal
- No auto test for earth leakage function
- Dimensions (H x L x W): 85mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- 1 module wide design
- Rated switch current of 6 A at 250 V AC
- Compatible with MCBs, RCBOs, RCCBs, isolating switches, and remote trip isolating switches
- No tool required for joining with the main device
- Allows insertion of supply busbar from the top side
- Fully compatible with TX3 and DX3 ranges
- Universal device fitting
- 2 change-over contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with main devices.
Applications
- Electrical switchboards and power cabinets
- Copper distribution systems
- Auxiliary and fault signalling in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient electrical system monitoring and fault signalling to reduce downtime and energy waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Auxiliary + Fault Signalling Changeover Switch DX³ - 6A 250V AC - 1 Module is available for immediate purchase, ideal for electrical switchboards and copper distribution applications.
