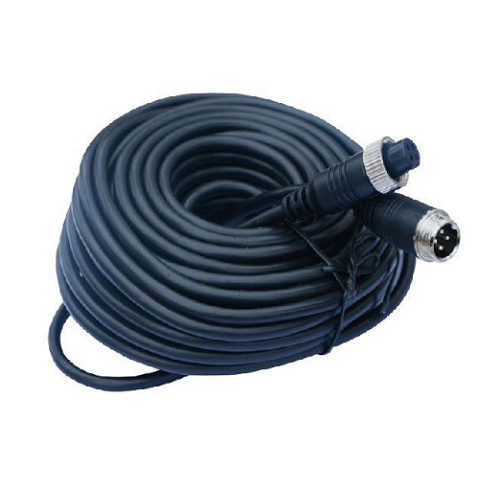

Aviation Extension Cable 12m to Suit Mobile Camera Hikvision

BRAND: Ness
SKU: 104-865-12
$94.50 List price: $126.00
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Hikvision aviation extension cable features a 12m length. Ideal for in-vehicle surveillance connecting Hikvision mobile cameras.

Alternatively Known As: Hikvision AE-MC0201-12, Mobile Camera Extension Cable, 4-Pin Aviation Camera Cable, Mobile DVR Camera Cable

Technical Specifications
  • Cable Length: 12 m
  • Connector Type: 4-pin M12 aviation connector
  • Interface: 12M4A_B to 12M4B_B
  • Transmission: Video, audio and power through one cable
  • Nominal Voltage: 30 V
  • Rated Current: Up to 1 A
  • Operating Temperature: -40°C to +105°C
  • Protection Rating: IP5X
  • Insulation Material: PVC
  • Conductor Material: Tinned copper
  • Application: Analogue and AHD mobile camera extension
  • Environmental Compliance: RoHS
  • Dimensions (H x L x W): 20mm x 12000mm x 20mm
  • Weight: 0.65 kg
Key Features
  • 12 m extension length for vehicle surveillance installations
  • Compatible with selected Hikvision mobile cameras and mobile DVRs
  • 4-pin M12 aviation-style connectors for secure equipment connection
  • Carries video, audio and 12 VDC power through a single cable
  • Suitable for in-vehicle surveillance systems in buses, trucks, vans and fleet vehicles
  • Wide operating temperature range for mobile applications
Applications
  • Connecting compatible Hikvision mobile cameras to mobile DVRs
  • In-vehicle surveillance systems
  • Bus, truck, van and fleet security installations
  • Analogue and AHD mobile camera systems
Environmental Benefits
  • RoHS compliance helps reduce the use of restricted hazardous substances
  • PVC-insulated construction and durable connectors support extended service life and reduced replacement waste
  • A combined video, audio and power connection can reduce the number of separate cables required
Warranty Information

36-month manufacturer warranty is listed for the Hikvision AE-MC0201 mobile camera cable series; confirm coverage and conditions with the authorised Australian distributor.

Available Now

Available through Hikvision and authorised Australian security-system distributors, subject to current distributor stock.
