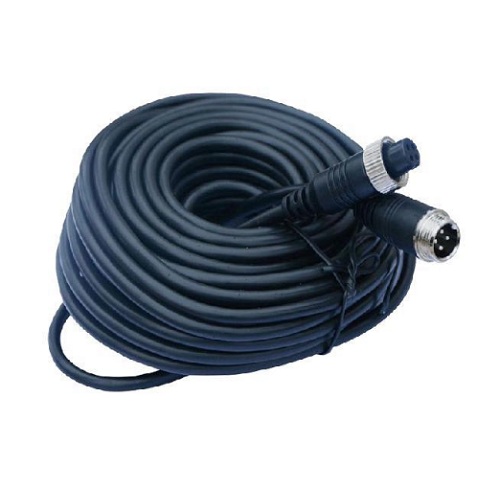

Aviation Extension Cable 20m to Suit Mobile Camera Hikvision
Hikvision aviation extension cable features a 20m length. Ideal for in-vehicle surveillance connecting Hikvision mobile cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AE-MC0201-20, 4-Pin Aviation Camera Extension Cable, Mobile Recorder Extension Cable
Technical Specifications
- Model: AE-MC0201-20
- Cable Length: 20 m
- Connector Type: 4-pin M12 aviation connector
- Connector Configuration: Male-to-female aviation connection
- Application: Analogue and AHD mobile camera systems
- Conductor Material: Tinned copper
- Insulation Material: PVC
- Nominal Voltage: 30 V
- Rated Current: Up to 1 A
- Protection Rating: IP5X
- Operating Temperature: -40°C to 105°C
- Shielding: Unshielded
- Transmission: Video, audio and power through one cable
- Dimensions (H x L x W): 80mm x 300mm x 300mm
- Weight: 0.8 kg
Key Features
- 20 m extension length for vehicle surveillance installations
- 4-pin M12 aviation connectors for compatible Hikvision mobile cameras
- Supports combined video, audio and power transmission
- Suitable for compatible Hikvision mobile analogue and AHD camera systems
- PVC-insulated stranded copper cable construction
- IP5X dust-protection rating
- Designed for in-vehicle camera and mobile recorder installations
Professional Installation Requirements
- No licensed installation is normally required for the cable itself. Installation should be completed by a suitably competent security or vehicle-electronics technician, with the camera, recorder and power requirements checked before connection.
Applications
- In-vehicle surveillance systems
- Bus, coach, truck and fleet camera installations
- Hikvision mobile analogue camera systems
- Extending the connection between a mobile camera and onboard recorder
- Vehicle-mounted AHD camera installations
Standards & Compliance
- AS/NZS 3000:2018 may apply to the associated electrical installation and wiring practices; this is not a claim that the cable itself is certified to that standard.
Environmental Benefits
- Copper conductors can be recovered and recycled at end of service life
- Durable cable construction can reduce replacement frequency and installation waste
- Suitable for extending existing camera systems without replacing the complete camera connection
Warranty Information
Hikvision Australia documentation identifies power and data cables as consumables generally covered for 12 months from shipment; confirm the applicable warranty with the authorised Australian distributor for this model.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
