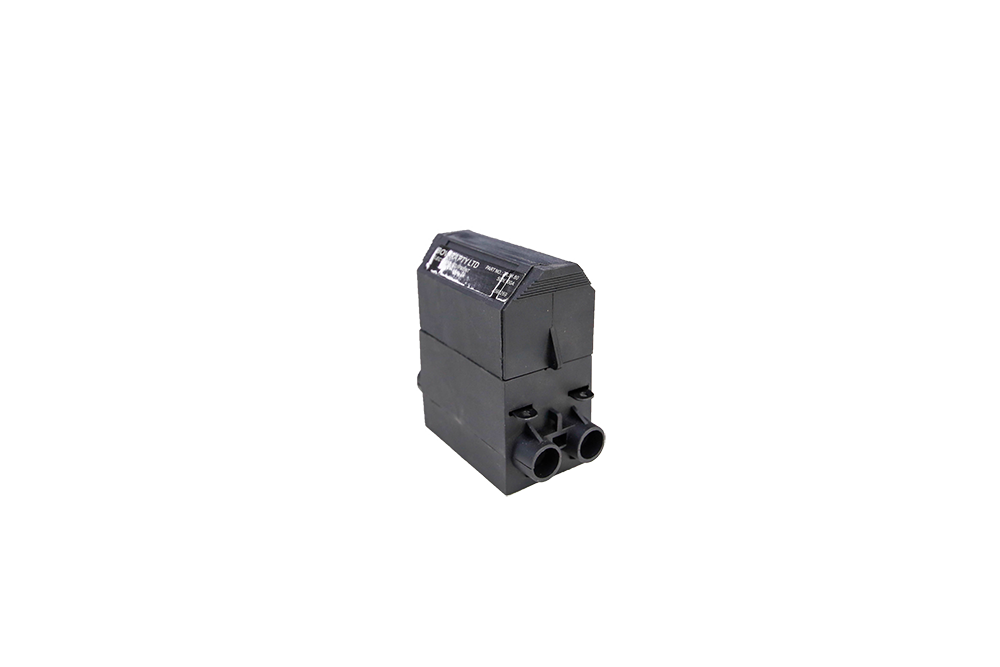

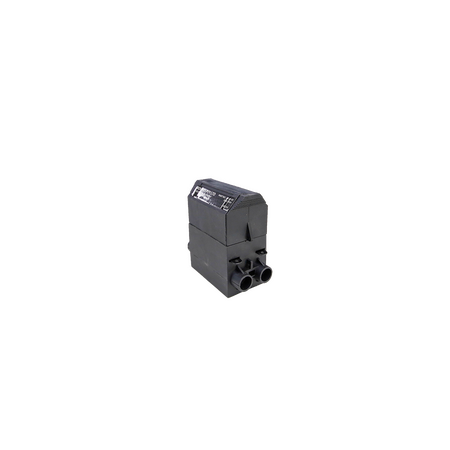

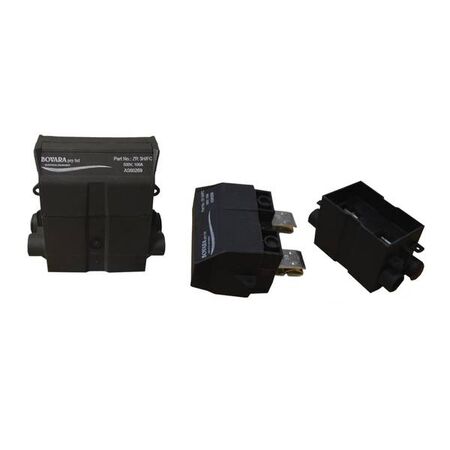

Back Wire Fuse Carrier 100A Loaded 80A 22x57mm Fuse VIC Bovara
Bovara ZR2 100A back wire service fuse carrier comes loaded with an 80A 22 x 57mm fuse link, 80kA at 415V AC. Ideal for Victorian supply authority meter panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Victorian Service Fuse Carrier, 80A HRC Service Fuse Carrier, Back-Wire Authority Fuse Carrier
Technical Specifications
- Carrier Rating: 100A
- Fuse Link Rating: 80A
- Fuse Link Format: 22mm diameter x 57–58mm nominal length
- Rated Voltage: 415V AC
- Maximum Rated Voltage: 500V AC
- Breaking Capacity: 80kA
- Wiring Configuration: Back wire
- Fuse Type: ZR2 service fuse link
- Application: Authority service fuse and meter protection
- Sealing: Provision for authority sealing and anti-intrusion protection
- Compliance Classification: IEC 60269 fuse-system requirements
- Dimensions (H x L x W): 80mm x 75mm x 30mm
- Weight: 0.18 kg
Key Features
- Supplied loaded with an 80A fuse link
- Back-wire configuration for compatible Victorian meter-panel layouts
- 100A carrier rating suitable for 80A service protection
- 80kA high rupturing capacity at 415V AC
- Compact 22mm barrel fuse format
- Designed for authority service fuses, fault-current limitation and isolation
- Includes anti-intrusion and authority-sealing provision
Professional Installation Requirements
- Installation, replacement and service-fuse removal must be performed by a licensed electrician or authorised electrical service provider in accordance with the current Victorian Service and Installation Rules and the relevant electricity distributor’s requirements. Unmetered live equipment must not be accessed by unauthorised persons.
Applications
- Victorian electricity supply authority meter panels
- Residential low-voltage service protection
- Commercial low-voltage service and meter protection assemblies
- Authority service fuse installations
- Fault-current limitation at service entry points
- Isolation of approved service circuits
Standards & Compliance
- AS/NZS 60269.2.1: Applicable reference for low-voltage fuse links and carrier assemblies of this type
- AS/NZS 60269.3.1: Relevant supplementary requirements for fuse-links up to 100A and 500V
- Victorian Service and Installation Rules: Relevant requirements for back-connected 100A assemblies accepting 22mm Type 2a barrel fuse cartridges; distributor approval must be confirmed for the specific installation
Environmental Benefits
- Replaceable fuse links allow the carrier to remain in service after a fault, reducing whole-assembly replacement waste
- High rupturing capacity protection can limit fault damage to connected electrical equipment and reduce replacement requirements
- Durable service-entry construction supports a long operating life and fewer replacement components
Warranty Information
Bovara does not publish a product-specific warranty period for this service fuse carrier. Warranty claims are subject to the supplier’s terms and conditions and applicable Australian Consumer Law guarantees.
Available Now
Available through authorised Bovara distributors in Australia.
