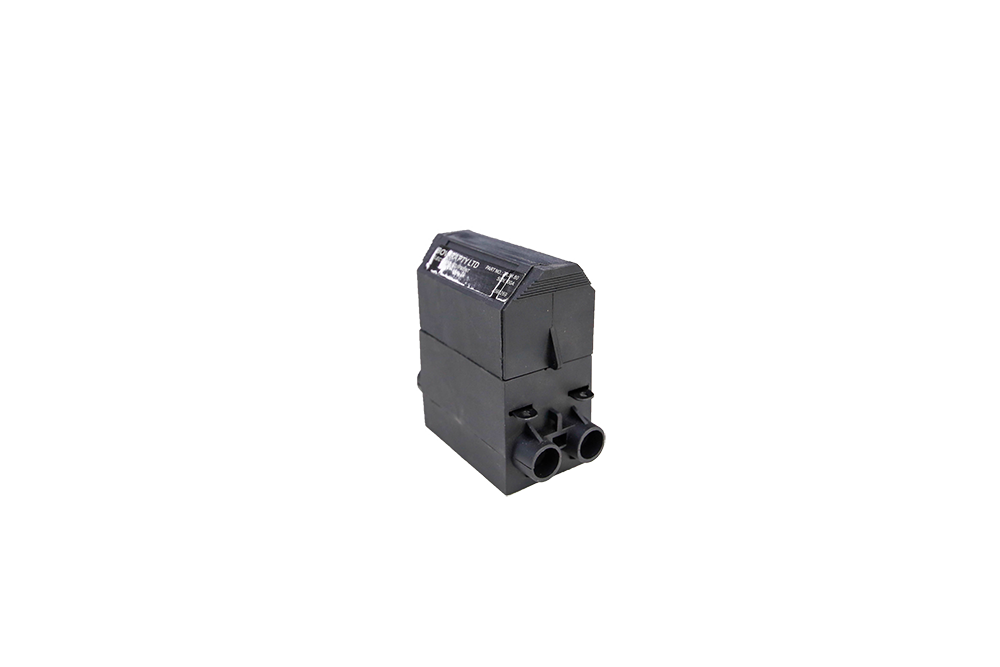

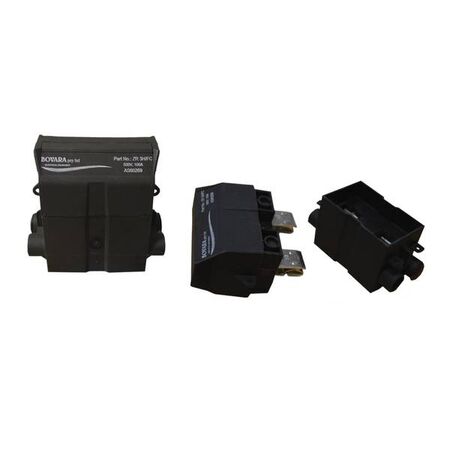

Back Wire Fuse Carrier 100A Loaded 80A 30x57mm Fuse NSW Bovara
Bovara ZR3 100A back wire service fuse carrier comes loaded with an 80A 30 x 57mm fuse link, 80kA at 415V/500V AC to BS1361. Ideal for NSW supply authority panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100A HRC Service Fuse Carrier, NSW Back-Wired Service Fuse, 80A 30 x 57mm Service Fuse Assembly
Technical Specifications
- Carrier Rating: 100A
- Fuse Link Rating: 80A
- Fuse Link Size: 30 x 57mm
- Rated Voltage: 500V AC
- Breaking Capacity: 80kA at 415V AC
- Wiring Configuration: Back wire
- Fuse Type: ZR3 service fuse link
- Type Testing: BS 1361:1971
- Security: Anti-intrusion design with sealing facility
- Applications: Authority service fuses, fault-current limiting and isolation
- Dimensions (H x L x W): 22mm x 58mm x 30mm
- Weight: 0.25 kg
Key Features
- Supplied loaded with an 80A fuse link
- 100A-rated back-wire carrier for compatible NSW service equipment
- 80kA high breaking capacity at 415V AC
- Suitable for 500V AC systems
- Anti-intrusion construction for authorised service equipment
- Sealing facility for supply-authority applications
- Designed for 30 x 57mm service fuse links
Professional Installation Requirements
- Installation, replacement and removal must be performed by an appropriately licensed electrician or authorised supply-authority technician. Follow the current NSW Service and Installation Rules, AS/NZS 3000, network-operator requirements and manufacturer instructions. Confirm compatibility with the existing fuse base and obtain supply-authority approval where required.
Applications
- NSW electricity supply authority panels
- Residential service protection and meter protection assemblies
- Electrical switchboards and metering panels
- Authority service-fuse replacement work
- Fault-current limiting and electrical isolation applications
Standards & Compliance
- AS/NZS 3000: applicable electrical installation requirements for service protection and metering equipment
- NSW Service and Installation Rules: applicable requirements for 100A service protection and 80A meter protection assemblies
- BS 1361:1971: manufacturer-declared type testing for the ZR3 fuse-carrier range; this is not an Australian Standards certification
Environmental Benefits
- Replaceable fuse-link design allows the failed fuse link to be replaced without discarding the carrier
- Durable service equipment can extend installation life and reduce replacement frequency
- Metallic fuse and carrier components may be recoverable through appropriate electrical recycling streams
Warranty Information
Bovara does not publicly state a standard warranty period for this product. Warranty claims are subject to Bovara’s applicable terms and Australian Consumer Law; confirm specific conditions with the supplier or authorised distributor.
Available Now
Available through authorised Bovara distributors in Australia.
