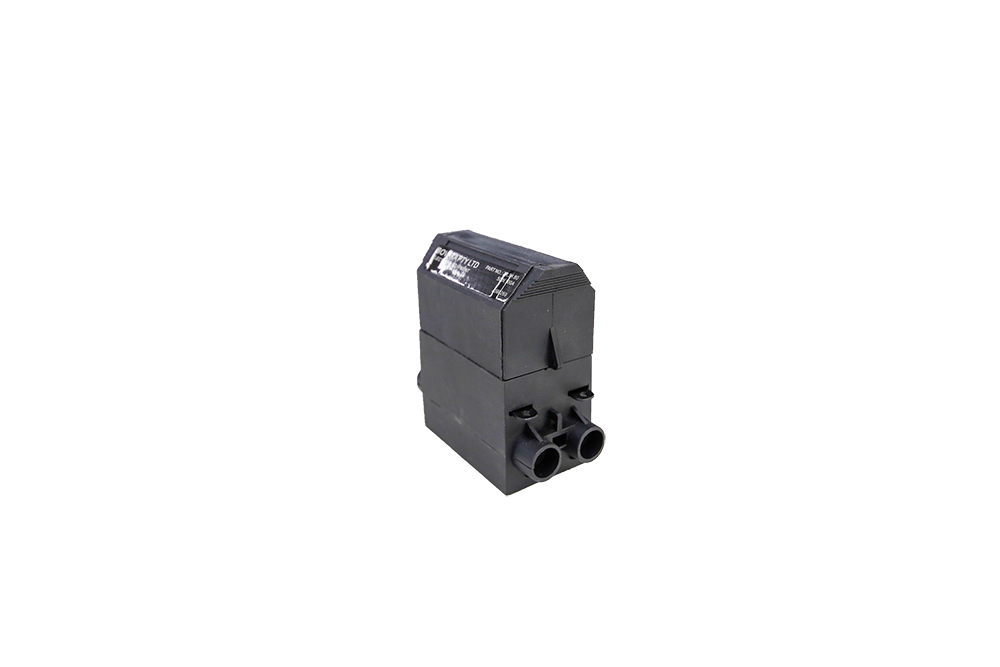

Back Wire Fuse Carrier Only 100A 30x58mm Bovara
Bovara ZR3 100A back wire service fuse carrier only, suits 30 x 58mm service fuse links up to 100A. Ideal for NSW supply authority meter panel replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Back-Wired Service Fuse Carrier, NSW Authority Fuse Carrier, ZR3 Fuse Carrier
Technical Specifications
- Maximum Rated Current: 100A
- Rated Voltage: 500V AC
- Fuse Link Size: 30mm diameter x 58mm length
- Breaking Capacity: Up to 80kA at 415V AC
- Wiring Configuration: Back wire
- Fuse Link Supply: Carrier only; fuse link not included
- Applications: Authority service fuses, fault-current limitation and isolation
- Security Feature: Anti-intrusion design
- Sealing: Sealing facility included
- Manufacturer Series: Bovara ZR3
- Type Testing: BS 1361:1971 stated by the manufacturer
- Fuse System Reference: IEC 60269 compatibility stated by the manufacturer
- Dimensions (H x L x W): 58mm x 78mm x 38mm
- Weight: 0.12 kg
Key Features
- Back-wire configuration for compatible NSW service-fuse bases and meter panels
- Accepts 30 x 58mm service fuse links up to 100A
- High interrupting capability of up to 80kA at 415V AC
- Rated for 500V AC applications
- Anti-intrusion design for supply authority equipment
- Sealing facility for controlled access
- Carrier supplied without the fuse link
- Suitable for replacement of compatible authority service-fuse carriers
Professional Installation Requirements
- Installation, replacement and removal must be carried out by an appropriately licensed electrician or authorised supply-authority service provider. Work must comply with AS/NZS 3000, applicable NSW Service and Installation Rules, manufacturer requirements and safe isolation procedures. Do not access or replace service-fuse equipment while energised unless authorised and suitably qualified.
Applications
- NSW supply authority meter panel replacements
- Residential service-fuse assemblies
- Commercial and industrial meter panels
- Authority service-fuse protection
- Fault-current limiting and electrical isolation
- Replacement of compatible ZR3 service-fuse carriers
Standards & Compliance
- AS/NZS 3000 Electrical installations — relevant to meter-panel installation, service protection and electrical safety
- Applicable NSW electricity supply authority Service and Installation Rules
- Manufacturer literature states IEC 60269 compatibility and BS 1361:1971 type testing; these references do not by themselves confirm an Australian Standards certification
Environmental Benefits
- Replaceable carrier design can reduce waste compared with replacing a complete service-fuse assembly
- Separate carrier and fuse-link replacement allows only the failed component to be changed
- Durable service-entry construction can extend installation life and reduce replacement frequency
- Metal components can generally be recovered through appropriate electrical equipment recycling streams
Warranty Information
Bovara-specific warranty terms for this service fuse carrier were not located in publicly available manufacturer information. Warranty claims should be confirmed with the supplier and remain subject to applicable Australian Consumer Law guarantees.
Available Now
Available through authorised Bovara distributors in Australia.
