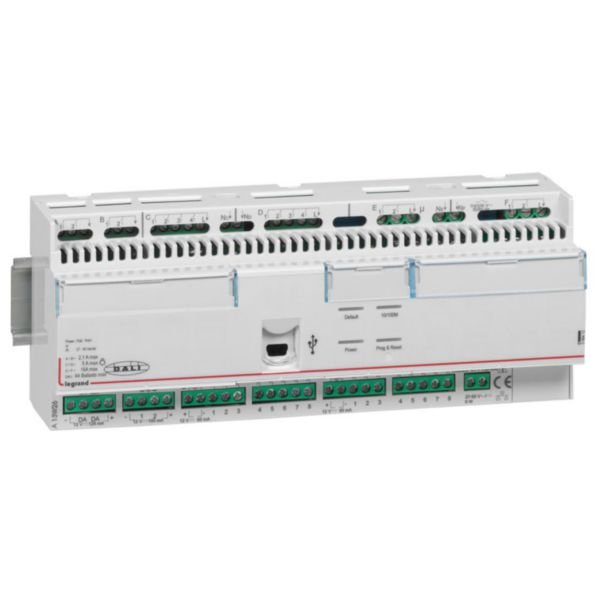

BACNET Hotel Room Controller Unit | 16 Inputs & 16 Outputs | DALI Dimming Support | IP20 Rated | @Each of 1 | by Legrand
The BACNET Hotel Room Controller Unit is designed for efficient hotel room management, featuring 16 digital inputs and 16 outputs for comprehensive control. Ideal for guestroom automation, it supports ON/OFF load control and DALI dimming for up to 64 ballasts, ensuring seamless integration into hospitality environments. Built with a halogen-free construction and USB connectivity, this unit is perfect for modern hotel systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BACNET Hotel Room Controller Unit | 16 Inputs & 16 Outputs | DALI Dimming Support | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 048412
Alternatively Known As: Hotel Room Automation Controller, BACNET Hotel Controller, Guestroom Lighting Controller, DIN Rail Hotel Controller
Technical Specifications
- Power consumption: 1 W
- Rated operating voltage: 27-56 V AC/DC
- Number of digital inputs: 16
- Output contacts for ON/OFF load control
- DALI dimming output for up to 64 ballasts
- Bus system: Powernet
- Mounting method: DIN-rail adaptor (DRA)
- Degree of protection: IP20
- Impact strength: IK07
- Operating temperature: -5 to 45 °C
- Storage temperature: -25 to 70 °C
- Terminal marking indication included
- Connection type: Screwed terminal, cable capacity 0.5-1.5 mm²
- Local operation with LED indication
- Fitted with USB plug
- Dimensions (H x L x W): 83mm x 66mm x 213mm
- Weight: 1.2 kg
Key Features
- 16 digital inputs and 16 outputs for comprehensive control
- Supports ON/OFF load control including lighting, roller shutters, contactors, and motors
- DALI dimming output supporting up to 64 ballasts
- Powernet bus system compatible
- Local and hand operation with LED indication
- Screwed terminal connections with 0.5-1.5 mm² capacity
- Halogen free construction
- Fitted with USB plug for connectivity
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration into hotel management systems.
Applications
- Hotel room management systems
- Guestroom automation and control
- Lighting and load control in hospitality environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient control of lighting and electrical loads reduces power consumption
- Supports integration with energy management systems for optimized usage
- Halogen free materials reduce environmental impact
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand BACNET Hotel Room Controller Unit is available for immediate purchase, ideal for hotel and guestroom automation applications.
