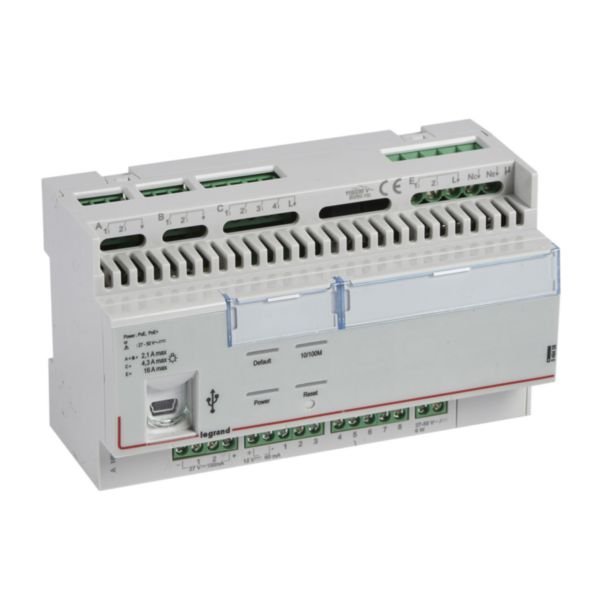

BACNET Hotel Room Controller Unit | 8 Inputs & 10 Outputs | DALI Dimming Support | IP20 Rated | @EA of 1 | by Legrand
The BACNET Hotel Room Controller Unit is designed for efficient hotel room management, featuring 8 digital inputs and 10 outputs for controlling lighting and electrical loads. With DALI dimming support for up to 64 ballasts, this unit is perfect for guestroom automation, ensuring energy-efficient operation and seamless integration with Powernet bus systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BACNET Hotel Room Controller Unit | 8 Inputs & 10 Outputs | DALI Dimming Support | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 048408
Alternatively Known As: Hotel Room Automation Controller, BACNET Hotel Controller, Guestroom Lighting Controller, DIN Rail Hotel Controller
Technical Specifications
- Power modules with output contacts for ON/OFF load control
- DALI dimming output for up to 64 ballasts
- Bus system: Powernet
- Mounting: DIN-rail adaptor (DRA)
- Number of digital inputs: 8
- Rated operating voltage: 27-50 V AC/DC
- Degree of protection: IP20
- Impact strength: IK07
- Operating temperature: -5 to 45 °C
- Storage temperature: -25 to 70 °C
- Connection type: Screwed terminal, cable capacity 0.5-1.5 mm²
- Local operation with LED indication
- Fitted with USB plug
- Dimensions (H x L x W): 83mm x 66mm x 142mm
- Weight: 0.5 kg
Key Features
- 8 digital inputs and 10 outputs for controlling various ON/OFF loads including lighting, roller shutters, contactors, and motors
- DALI dimming output supporting up to 64 ballasts
- Compatible with Powernet bus system
- Local and hand operation with LED indication
- Screwed terminal connection with 0.5-1.5 mm² cable capacity
- Halogen free construction
- Fitted with USB plug for configuration
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with BACNET and Powernet bus systems to ensure proper integration and safety compliance.
Applications
- Hotel room management systems
- Guestroom lighting and automation control
- Building automation for hospitality industry
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy-efficient control of lighting and electrical loads in hotel rooms
- Supports DALI dimming for optimized lighting energy use
- Halogen free materials reduce environmental impact
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand BACNET Hotel Room Controller Unit is available for immediate purchase, ideal for hotel and hospitality guestroom automation and lighting control.
