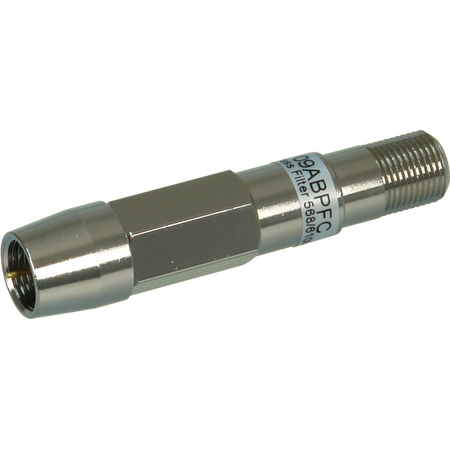

Band Pass Filter Block C | 568-610 MHz | High Signal Quality | Compact Design by Bitek
Band pass filter with 568-610 MHz frequency range and high signal quality—ideal for telecommunication systems. Built for signal enhancement, with compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digitek Band Pass Filter - Block C (568 - 610Mhz) - 09ABPFC
Brand: Bitek
SKU: 09ABPFC
Alternatively Known As: Band Pass Filter, Signal Filter, Telecommunication Filter
Technical Specifications
- Frequency range: 568 - 610 MHz
- Insertion Loss: <3 dB
- Return Loss: >15 dB
- Connectors: N-Type Female
- Operating Temperature: -10°C to +60°C
- Dimensions (H x L x W): 100mm x 500mm x 200mm
- Weight: 0.5 kg
Key Features
- Designed specifically for Block C frequency range.
- Improves signal quality by filtering out unwanted frequencies.
Professional Installation Requirements
- Installation by qualified telecommunications professionals is recommended for optimal performance.
Applications
- Telecommunication systems
- Signal enhancement for broadcasting
Standards & Compliance
- Complies with AS/NZS standards for telecommunications equipment.
Environmental Benefits
- Reduces interference, improving energy efficiency in telecommunications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Digitek Band Pass Filter - Block C (568 - 610Mhz) is available now for immediate purchase. Ideal for telecommunication systems requiring enhanced signal quality.
