Band Pass Filter Block D | 610-652MHz | High Performance | Compact Design by Bitek
Band pass filter with 610-652MHz frequency range and high performance—ideal for telecommunications and broadcasting. Built for signal clarity, with compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

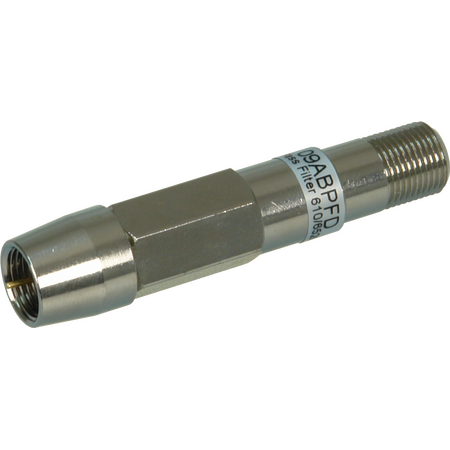

Product Name/Title: Digitek Band Pass Filter - Block D (610 - 652MHz) - 09ABPFD
Brand: Bitek
SKU: 09ABPFD
Alternatively Known As: Bitek Band Pass Filter, Frequency Filter, RF Filter
Technical Specifications
- Frequency Range: 610 - 652MHz
- Insertion Loss: < 2dB
- Return Loss: > 20dB
- Power Handling: up to 10W
- Connectors: SMA female
- Dimensions (H x L x W): 50mm x 200mm x 100mm
- Weight: 0.3 kg
Key Features
- High performance band pass filter for specific frequency range.
- Compact design for easy integration.
Professional Installation Requirements
- Installation by a qualified technician is recommended for optimal performance.
Applications
- Telecommunications
- Broadcasting
- Signal processing
Standards & Compliance
- Complies with relevant Australian telecommunications standards.
Environmental Benefits
- Minimizes signal interference, enhancing overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Digitek Band Pass Filter - Block D (610 - 652MHz) is available now for immediate purchase. Ideal for telecommunications and broadcasting applications.
