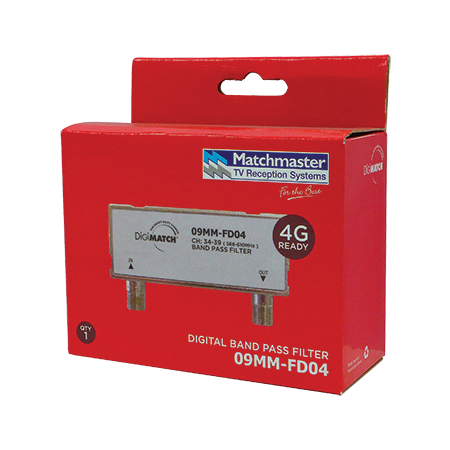

Band Pass Filter Channels (34-39) Block C

Band Pass Filter Channels 34-39 | 470-512 MHz | Low Insertion Loss | Compact Design by Matchmaster

BRAND: Matchmaster

SKU: 09MM-FD04

$56.60 List price: $68.50

+ −

30 Days Return Delivery Options

Band pass filter with 470-512 MHz frequency range and low insertion loss—ideal for telecommunications and broadcasting. Built for signal clarity, with compact design to minimize interference.

Description
Attachments

Product Name/Title: Band Pass Filter Channels (34-39) Block C

Brand: Matchmaster

SKU: 09MM-FD04

Alternatively Known As: UHF Block C Band Pass Filter, 4G/5G Filtered TV Filter, External TV Signal Filter

Technical Specifications

Frequency Range: 568-610MHz (Block C)
Filter Type: Low pass with built-in 4G/5G filter
Connector Type: 'F' type fittings

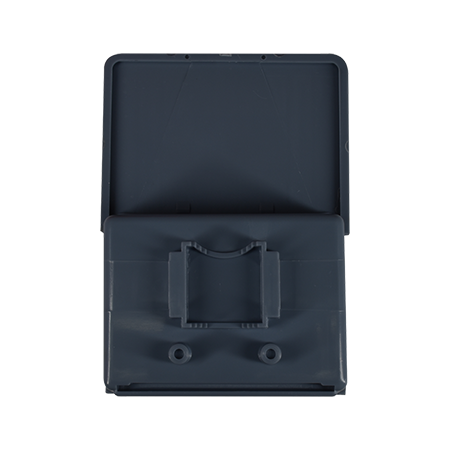

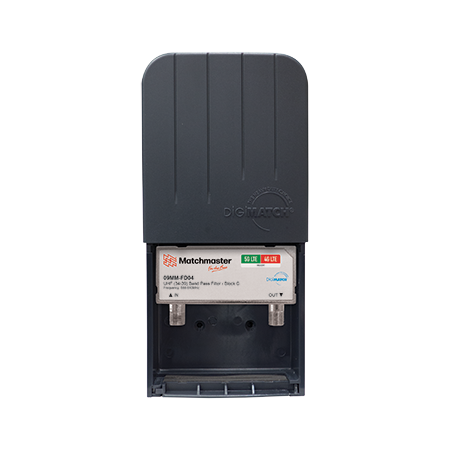

Housing: Full metal shielded, weatherproof
Through Loss: < 4.0dB typical
Dimensions (H x L x W): 40mm x 60mm x 100mm
Weight: 0.3 kg

Key Features

Passes frequency range 568-610MHz (Block C)
Eliminates unwanted frequencies to allocate correct logical channel numbers
Filters out 4G/5G cellular frequencies to reduce interference
'F' type fittings with full metal shielded housing for high-level screening
Through loss less than 4.0dB typical
Weatherproof housing suitable for external mounting

Professional Installation Requirements

Installation by a qualified technician is recommended to ensure proper connection and optimal filtering performance.

Applications

Television signal filtering in Block C transmission regions
Eliminating interference from 4G/5G cellular frequencies
Outdoor and indoor antenna installations requiring frequency filtering

Standards & Compliance

Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)

Environmental Benefits

Reduces electronic interference, improving signal efficiency and reducing need for repeated transmissions.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster Band Pass Filter Channels (34-39) Block C is available now for immediate purchase. Ideal for use in TV antenna systems requiring clear signal reception in Block C regions.

Brochure (09mm-fd04_brochure.pdf, 1,346 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
