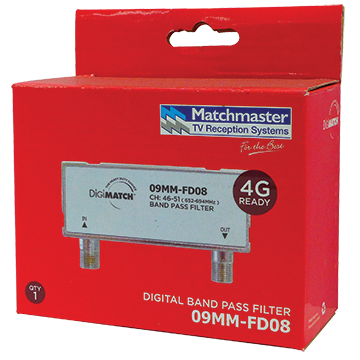

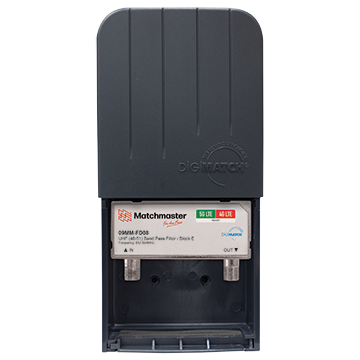

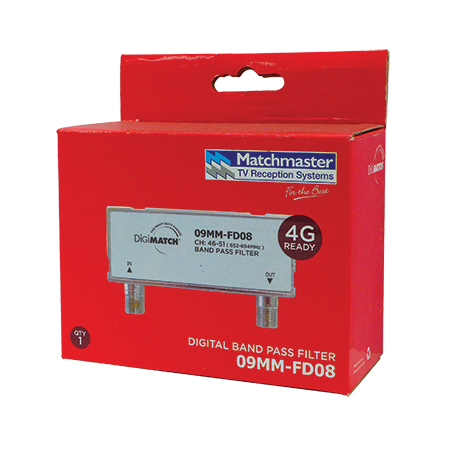

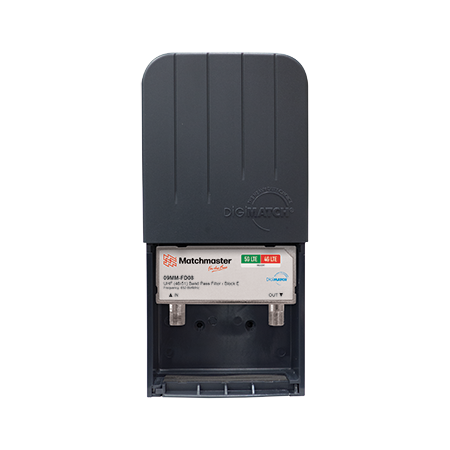

Band Pass Filter Channels (46-51) Block E

Band Pass Filter Channels 46-51 | 646-698 MHz | High Selectivity | Compact Design by Matchmaster

BRAND: Matchmaster

SKU: 09MM-FD08

$42.50 List price: $55.40

+ −

30 Days Return Delivery Options

Band pass filter with 646-698 MHz frequency range and high selectivity—ideal for telecommunications and broadcasting. Built for signal clarity, with compact design for easy integration.

Description
Attachments

Product Name/Title: Band Pass Filter Channels (46-51) Block E

Brand: Matchmaster

SKU: 09MM-FD08

Alternatively Known As: Channel Band Pass Filter, RF Band Pass Filter

Technical Specifications

Frequency range: 646-698 MHz
Insertion Loss: < 2 dB
Return Loss: > 15 dB
Power Handling: 10W
Impedance: 50 Ohm
Dimensions (H x L x W): 100mm x 300mm x 200mm
Weight: 1.5 kg

Key Features

Designed specifically for Channels 46-51 in Block E.
High selectivity ensures minimal interference from adjacent channels.
Compact design for easy integration into existing systems.

Professional Installation Requirements

Installation by a licensed technician is recommended for optimal performance.

Applications

Telecommunications: Enhancing signal clarity in radio communications.
Broadcasting: Used in TV and radio broadcasting to filter specific frequencies.
Research: Useful in scientific studies involving signal filtering.

Standards & Compliance

Complies with AS/NZS CISPR 22 for electromagnetic compatibility.

Environmental Benefits

Reduces energy consumption by improving signal efficiency.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Band Pass Filter Channels (46-51) Block E is available now for immediate purchase. Ideal for telecommunications and broadcasting applications.

Brochure (09mm-fd08_brochure.pdf, 1,209 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
