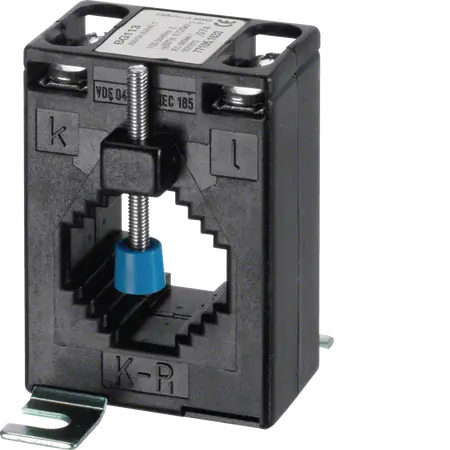

Bar/Cable-through Current Transformer BG 113 600/5A 5VA Class 1

Bar Current Transformer 600/5A | 5VA Class 1 | Screw Terminal | IP10 by Hager

BRAND: :hager

SKU: SRC06005

$92.00 List price: $117.60

+ −

30 Days Return Delivery Options

Bar current transformer with 600/5A rating and 5VA Class 1 accuracy—ideal for industrial and commercial power monitoring. Built for precise current measurement, with screw terminal connectivity and IP10 protection for indoor use.

Description
Attachments

Product Name/Title: Bar/Cable-through Current Transformer BG 113 600/5A 5VA Class 1

Brand: Hager

SKU: SRC06005

Alternatively Known As: Current Transformer, CT, Bar Current Transformer, Cable-through Current Transformer

Technical Specifications

Power: 5 VA
Total power loss under IN: 5.50 W
Operating temperature: -40 to 40 °C
Storage/transport temperature: -40 to 40 °C
Max. intensity of primary: 600 A
Max. intensity of secondary: 5 A
Frequency: 50 - 60 Hz
Rated insulation voltage: 3000 V
Connection cross-section for flexible conductor: 1.5 - 6 mm²
Connection cross-section for rigid conductor: 1.5 - 6 mm²
Dimensions (H x L x W): 70mm x 30mm x 50mm
Weight: 0.5 kg

Key Features

Accuracy class 1 for precise current measurement.
Screw terminal connectivity for easy installation.
IP10 ingress protection for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power monitoring and management
Commercial: Energy efficiency applications
General: Electrical installations requiring current measurement

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Bar/Cable-through Current Transformer BG 113 600/5A 5VA Class 1 is available now for immediate purchase. Ideal for industrial and commercial applications requiring accurate current measurement.

SRC06005 (SRC06005, 212 Kb) [Download]

reach_declaration_SRC06005.pdf (reach_declaration_SRC06005.pdf, 103 Kb) [Download]

rohs_declaration_SRC06005.pdf (rohs_declaration_SRC06005.pdf, 104 Kb) [Download]

(DECLARATION_22_3436_12_22.pdf, 581 Kb) [Download]
