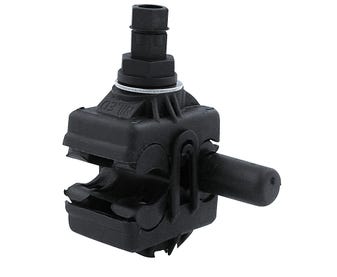

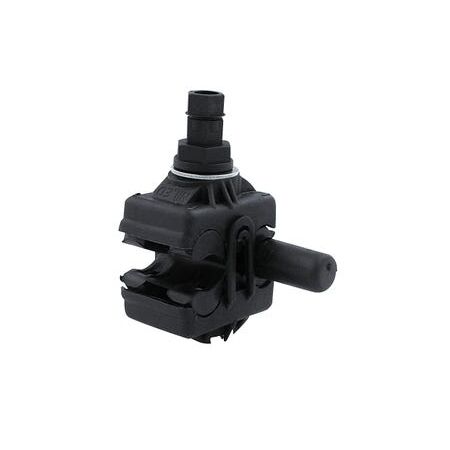

Bare Wire to Insulation Piercing Connector 120-35mm2 | Tinned Brass Copper | Live Installation | Weatherproof by Cabac
Cabac Bare Wire to Insulation Piercing Connector 120-35mm2 enables quick and secure tapping off of low voltage XLPE insulated Aerial Bundled Cable using a unique insulation piercing technique, suitable for all weather conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bare Wire to Ins Pierc Conn. 120-35mm2
Brand: Cabac
SKU: IPCB120/35
Alternatively Known As: Insulation Piercing Connector, IPC Connector, ABC Cable Connector, Bare Wire to ABC Connector
Technical Specifications
- Suitable for main cable range: 120-16 mm²
- Suitable for branch cable range: 35-6 mm²
- Contact bridges made from tinned brass copper
- Installation torque controlled by hex nut shearing
- Installation tool: 13 mm spanner
- Compatible with low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Can be installed live without removing insulation
- Dimensions (H x L x W): 40mm x 120mm x 80mm
- Weight: 0.2 kg
Key Features
- Unique insulation piercing technique for tapping off ABC cables
- Can be installed fully live without removing insulation
- Contact bridges made from tinned brass copper
- Hex nut shears at correct torque for secure connection
- Suitable for all weather applications
- Quick and easy installation with a 13 mm spanner
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Connecting bare copper or aluminium conductors to ABC style insulated cables
- Suitable for all weather outdoor electrical connections
- Class 2 conductor applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Installation without removing insulation reduces waste and potential conductor damage
- Durable materials ensure long-lasting connections reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Bare Wire to Insulation Piercing Connector 120-35mm2 is available now for immediate purchase. Ideal for overhead line electrical connectivity and ABC cable tapping applications.
