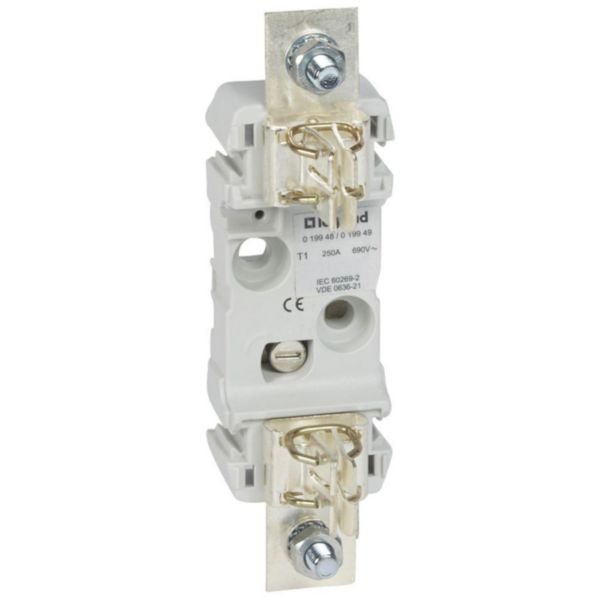

Base for Blade Type Cartridge Fuse | 1P Configuration | 250 A Rated Current | Self-Extinguishing Plastic | @EA of 1 | by Legrand
The Base for Blade Type Cartridge Fuse is designed for reliable electrical distribution, featuring a 1P configuration and a rated current of 250 A. Ideal for industrial installations and fuse protection systems, this fuse base conforms to IEC 60269-2 standards and offers versatile mounting options. With a self-extinguishing plastic construction, it ensures safety and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conforms to IEC 60269-2 standards
- 1 Pole (1P) configuration
- Size 1 fuse base
- Rated current: 250 A
- Mounting: screw or symmetrical rail
- Connection: M10
- Bus-mounting type: Yes
- Swivelling mechanism: No
- Construction size: NH1
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.3 kg
Key Features
- Self-extinguishing plastic base for safety
- Sprung contact points for reliable connection
- Suitable for blade type cartridge fuses conforming to IEC 60269-2
- Mounting options include screw or symmetrical rail
- Bus-mounting type compatible
- Rated current of 250 A
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution panels
- Industrial electrical installations
- Fuse protection systems in commercial and residential buildings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Supports safe electrical installations reducing risk of fire hazards
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Base for Blade Type Cartridge Fuse 1P Bare Size 1 250A is available for immediate purchase, ideal for fuse protection in electrical distribution and industrial applications.
