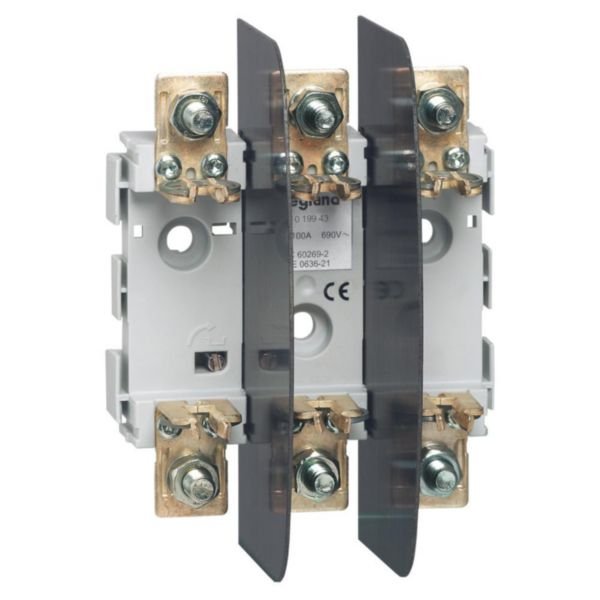

Base for Blade Type Cartridge Fuse | 3P Configuration | 100 A Rated Current | Self-Extinguishing Plastic | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 019943
$164.60 List price: $205.10
+ −
30 Days Return Delivery Options
The Base for Blade Type Cartridge Fuse is designed for reliable electrical distribution, featuring a 3-pole configuration and a rated current of 100 A. Ideal for industrial and commercial installations, this fuse base conforms to IEC 60269-2 standards and includes a self-extinguishing plastic base for enhanced safety. With versatile mounting options and sprung contact points, it ensures a secure connection for your electrical systems.

Product Name/Title: Base for Blade Type Cartridge Fuse | 3P Configuration | 100 A Rated Current | Self-Extinguishing Plastic | @Each of 1 | by Legrand

Brand: Legrand

SKU: 019943

Alternatively Known As: Blade Fuse Base 3P, Cartridge Fuse Holder 3 Pole, 3P Fuse Base Size 000/00, 100A Fuse Base

Technical Specifications
  • Conforms to IEC 60269-2 standards
  • Construction size: NH000
  • Number of poles: 3
  • Rated current: 100 A
  • Bus-mounting type: Yes
  • Swivelling mechanism: No
  • Mounting: Screw or symmetrical rail
  • Connection: M8
  • Dimensions (H x L x W): 80mm x 120mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Compatible with blade type cartridge fuses conforming to IEC 60269-2
  • Self-extinguishing plastic base for enhanced safety
  • Sprung contact points for reliable connection
  • 3-pole (3P) configuration
  • Supplied with 2 separation dividers
  • Mounting options: screw or symmetrical rail
  • Connection size: M8
  • Bus-mounting type compatible
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
  • Electrical distribution panels
  • Industrial electrical installations
  • Fuse protection in commercial and residential buildings
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce need for frequent replacements
  • Supports safe electrical installations reducing risk of fire hazards
Warranty Information

Standard manufacturer warranty applies, typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for electrical fuse protection in industrial, commercial, and residential applications.
