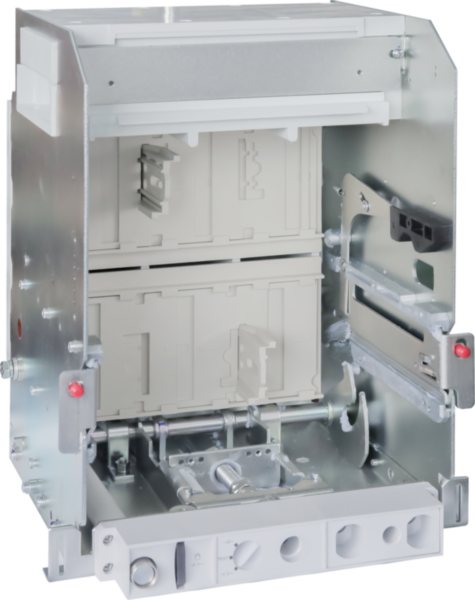

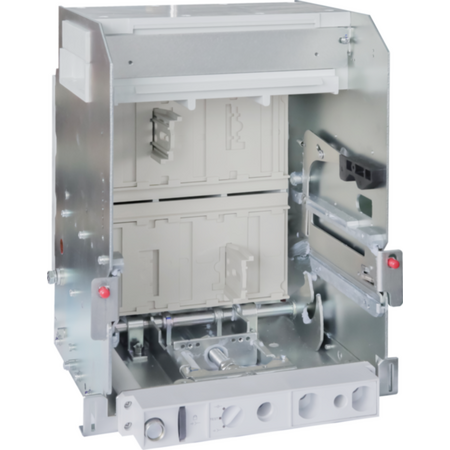

Base for DMX³ 1600 Device | 3 Poles Configuration | Bolt Connection | IP20 Rated | @Each of 1 | by Legrand
The Base for DMX³ 1600 device features a 3 poles configuration and a reliable bolt connection, making it ideal for industrial electrical distribution panels and switchboards. Designed for professional installation, this base ensures compliance with safety standards while providing a halogen-free solution for flexible or rigid cable connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device construction: Built-in device slide-in technique (withdrawable)
- Integrated earth fault protection: No
- Type of electrical connection of main circuit: Bolt connection
- Suitable for DIN rail mounting: No
- With switched-off indicator: No
- With integrated under voltage release: No
- Number of poles: 3
- Position of connection for main current circuit: Back side
- Complete device with protection unit: No
- Motor drive integrated: No
- Motor drive optional: No
- Degree of protection (IP): IP20
- Degree of impact strength (IK): Not applicable
- Operating / setting temperature: -5 to 70 °C
- Storage temperature: -25 to 85 °C
- Voltage type: AC
- Frequency: 50-60 Hz
- Electric supplying direction: By the top
- Terminal marking indication: No
- Colour: Grey
- Halogen free: Yes
- Terminals capacity: 120-1000 mm²
- Cable nature for connection: Flexible or rigid
- Label space/information surface: No
- Contains Batteries and/or Accumulator: No
- Dimensions (H x L x W): 352mm x 297mm x 282mm
- Weight: 15 kg
Key Features
- Built-in device slide-in technique (withdrawable)
- 3 poles configuration
- Bolt connection for main circuit
- Back side connection for main current circuit
- Degree of protection IP20
- Halogen free materials
- Terminals capacity 120-1000 mm²
- Suitable for flexible or rigid cable connections
- Operating temperature range -5 to 70 °C
- Storage temperature range -25 to 85 °C
- Voltage type AC, frequency 50-60 Hz
- Electric supply direction from the top
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical distribution panels
- Switchboards and power cabinets
- Circuit breaker and moulded case switch installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact and improve safety in case of fire.
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
