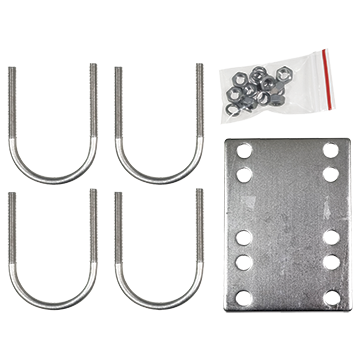

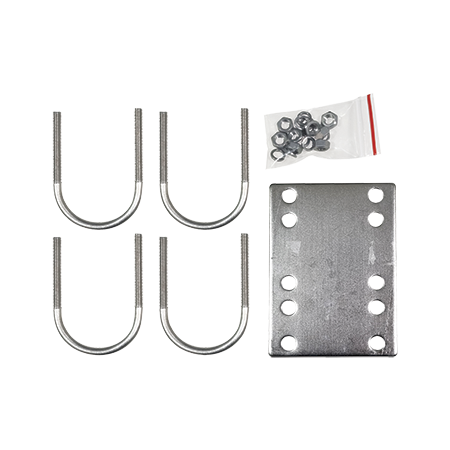

Base Station Antenna Mount | Universal Fit | Stainless Steel | IP65 Rated by Matchmaster

SKU: 56MM-BSAM2
$130.60 List price: $158.10
+
Base station antenna mount with universal fit and stainless steel construction—ideal for residential and commercial antenna setups. Built for durability, with IP65 weather resistance and corrosion-resistant finish.

Product Name/Title: Base Station Antenna Mount - Universal, Stainless Steel

Brand: Matchmaster

SKU: 56MM-BSAM2

Alternatively Known As: Antenna Mount Bracket, Base Station Antenna Bracket, Stainless Steel Antenna Mount

Technical Specifications
  • Material: Stainless steel
  • Minimum pole outer diameter: 50mm
  • Maximum pole outer diameter: 60mm

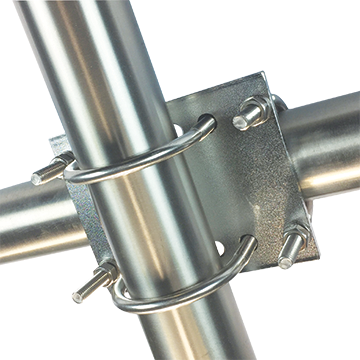

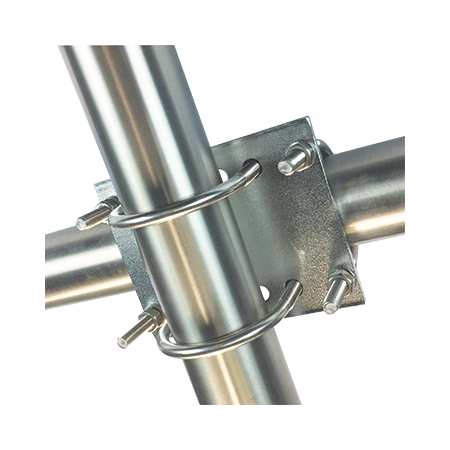

  • Supports parallel mounting of colinear antennas
  • Supports perpendicular mounting of side-mounted dipoles and large yagi beams
  • Dimensions (H x L x W): 200mm x 150mm x 150mm
  • Weight: 2 kg
Key Features
  • Heavy-duty stainless steel construction
  • Universal mounting bracket
  • Fits minimum pole OD of 50mm and maximum pole OD of 60mm
  • Supports parallel mounting of colinear antennas
  • Supports perpendicular mounting of side-mounted dipoles and large yagi beams
Professional Installation Requirements
  • Professional installation recommended to ensure secure mounting and optimal antenna performance.
Applications
  • Cellular base station antenna mounting
  • 2-Way radio antenna mounting
  • Mounting colinear antennas
  • Mounting side-mounted dipoles and large yagi beams
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster Base Station Antenna Mount is available now for immediate purchase. Ideal for cellular and 2-way radio antenna installations.
