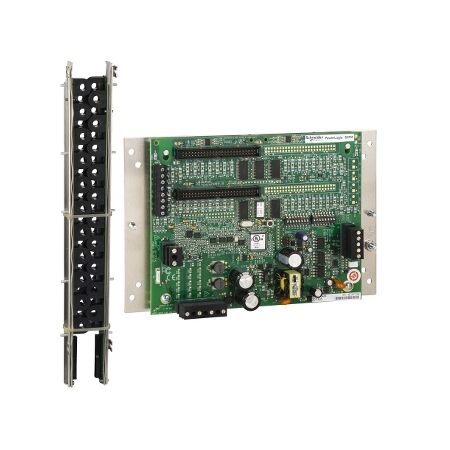

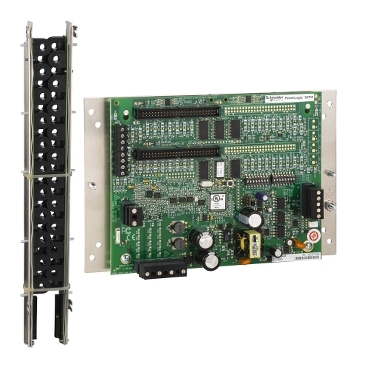

Basic Board.2 Adapter Board | Supports 42 CTs | 50A Per Channel | by Clipsal
The Basic Board.2 Adapter Board is designed for commercial and industrial electrical panels, supporting up to 42 split core current transformers for branch circuit monitoring. With a maximum current of 50A per channel, it provides real-time power usage data, making it ideal for energy management and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Basic Board.2 Adapter Board | Supports 42 CTs | 50A Per Channel | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCC42S
Alternatively Known As: BCPM Adapter Board, Branch Circuit Power Monitor Adapter, Clipsal Power Monitoring Board, Schneider BCPM Adapter, 42 Circuit Power Monitor
Technical Specifications
- Supports 42 split core CTs (current transformers)
- Maximum current per channel: 50A
- Compatible with BCPM (Branch Circuit Power Monitor) systems
- Designed for use in commercial and industrial electrical panels
- Provides real-time circuit-level power data
- Dimensions (H x L x W): 100mm x 250mm x 400mm
- Weight: 2.5 kg
Key Features
- Supports up to 42 split core current transformers (CTs) for branch circuit monitoring
- Monitors circuits up to 50A per channel
- Provides real-time power usage data for energy management
- Modular design for easy integration into existing panels
- Compatible with Schneider Electric/Clipsal BCPM systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with power monitoring systems and AS/NZS 3000 wiring rules.
Applications
- Commercial and industrial electrical distribution boards
- Data centers for branch circuit power monitoring
- Facilities management for energy usage tracking
- Electrical panels requiring multi-circuit monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy usage tracking to support energy efficiency initiatives
- Helps identify power wastage and optimize facility energy consumption
- Supports compliance with green building and sustainability standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal BCPM Power Monitoring Basic Board Adapter (SCHBCPMSCC42S) is available for immediate purchase. Ideal for commercial and industrial energy management and branch circuit monitoring.
