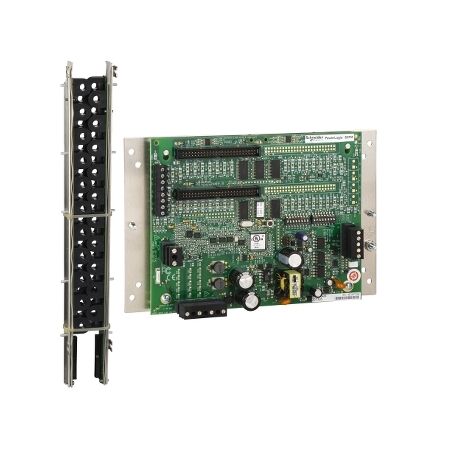

Basic Board.2 Adapter Boards.3 | Supports 30 Split-Core CTs | 50A Current Measurement | Modular Design | @Pack of 1 | by Clipsal
The Basic Board.2 Adapter Boards.3 is designed for advanced branch circuit monitoring, supporting up to 30 split-core current transformers and measuring current up to 50A per circuit. Ideal for commercial and industrial electrical distribution panels, it provides real-time power monitoring and energy usage data, ensuring efficient energy management and compliance with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Basic Board.2 Adapter Boards.3 | Supports 30 Split-Core CTs | 50A Current Measurement | Modular Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCC30S
Alternatively Known As: BCPM Adapter Board, Branch Circuit Power Monitor Adapter, Clipsal Power Monitoring Board, Schneider BCPM Adapter
Technical Specifications
- Supports 30 split-core CTs (current transformers)
- Current measurement: up to 50A per circuit
- Compatible with BCPM power monitoring systems
- Designed for use in electrical distribution panels
- Provides real-time data for energy management
- Dimensions (H x L x W): 100mm x 200mm x 300mm
- Weight: 2.5 kg
Key Features
- Supports up to 30 split-core current transformers (CTs) for branch circuit monitoring
- Measures current up to 50A per circuit
- Provides real-time power monitoring and energy usage data
- Modular design for easy integration into existing panels
- Compatible with Schneider Electric/Clipsal BCPM systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safety regulations.
Applications
- Commercial and industrial electrical distribution boards
- Data centers for branch circuit power monitoring
- Facilities management for energy usage tracking
- Electrical panels requiring multi-circuit monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring to support energy efficiency initiatives
- Helps identify power wastage and optimize energy consumption
- Supports compliance with green building and sustainability standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal BCPM Power Monitoring Basic Board Adapter SCHBCPMSCC30S is available for immediate purchase. Ideal for commercial and industrial electrical panels requiring advanced branch circuit monitoring.
