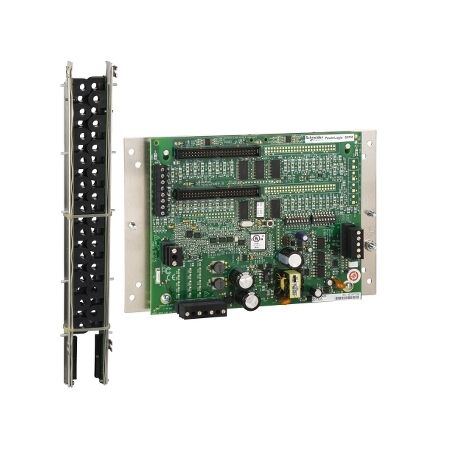

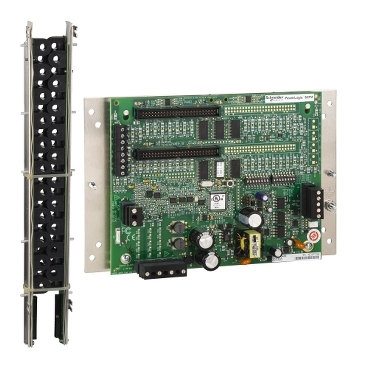

Basic Board.4 Adapter Boards.8 | Supports 84 Split Core CTs | Real-Time Power Monitoring | by Clipsal
The Basic Board.4 Adapter Boards.8 is designed for efficient branch circuit power monitoring, supporting up to 84 split core current transformers for 50A circuits. Ideal for commercial and industrial applications, it provides real-time data on current, voltage, power, and energy usage, making it perfect for energy management systems and electrical distribution panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Basic Board.4 Adapter Boards.8 | Supports 84 Split Core CTs | Real-Time Power Monitoring | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCC84S
Alternatively Known As: BCPM Power Monitoring Board, Branch Circuit Power Meter, Clipsal Power Meter Board, Schneider Electric BCPM, 84 Circuit Power Monitor
Technical Specifications
- Supports 84 split core CTs (50A each)
- Branch Circuit Power Monitoring (BCPM) technology
- Real-time monitoring of current, voltage, power, and energy
- Compatible with Modbus communication protocols
- Designed for integration into electrical distribution panels
- Dimensions (H x L x W): 100mm x 350mm x 450mm
- Weight: 3.5 kg
Key Features
- Supports up to 84 split core current transformers (CTs) for branch circuit monitoring
- Designed for 50A circuits
- Provides real-time power monitoring and energy usage data
- Modular and scalable for large installations
- Compatible with Schneider Electric/Clipsal energy management systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with power monitoring systems and electrical distribution boards.
Applications
- Commercial and industrial electrical distribution boards
- Data centers for branch circuit power monitoring
- Facilities management for energy usage analysis
- Electrical panels requiring multi-circuit monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy usage tracking to support energy efficiency initiatives
- Helps identify power wastage and optimize facility energy consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal BCPM Power Monitoring Basic Board with 84 Split Core CTs (SCHBCPMSCC84S) is available for immediate purchase. Ideal for commercial and industrial energy management applications.
