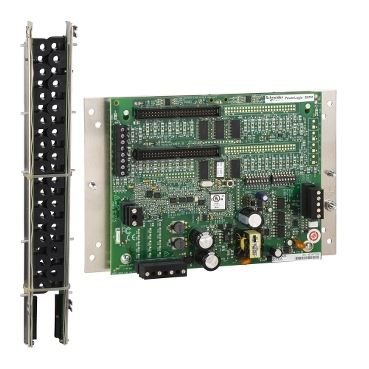

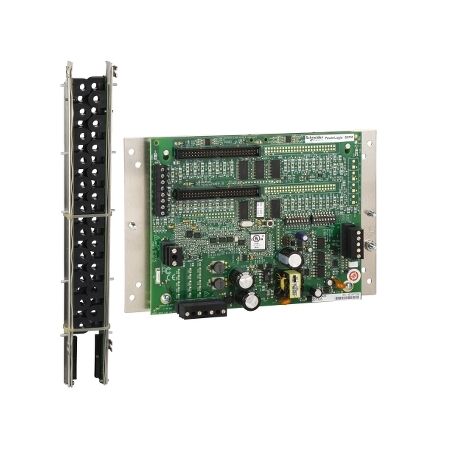

Basic Board Adapter for BCPM | 60 Split Core CTs | 50A Rating | Modbus RTU Communication | @Pack of 1 | by Clipsal
The Basic Board Adapter for BCPM is designed for accurate power monitoring in commercial and industrial settings. Featuring 60 split core current transformers rated at 50A each, it supports real-time energy usage tracking and load management. Ideal for retrofit and new installations, this board is compatible with Schneider Electric and Clipsal energy management systems, ensuring efficient energy monitoring and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Basic Board Adapter for BCPM | 60 Split Core CTs | 50A Rating | Modbus RTU Communication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBCPMSCC60S
Alternatively Known As: Branch Circuit Power Meter, BCPM Adapter Board, Clipsal Power Monitoring Board, Schneider Electric BCPM, Energy Metering Board
Technical Specifications
- Type: Basic Board Adapter for BCPM
- Number of CTs: 60 split core current transformers
- CT Rating: 50A per CT
- Voltage: 90-277V AC (typical for BCPM systems)
- Communication: Modbus RTU (RS-485)
- Accuracy: ±1% for current measurement
- Operating Temperature: 0°C to 60°C
- Mounting: Panelboard/switchboard compatible
- Dimensions (H x L x W): 100mm x 300mm x 400mm
- Weight: 2.5 kg
Key Features
- BCPM (Branch Circuit Power Meter) for accurate power monitoring
- Includes 60 split core current transformers (CTs) rated at 50A each
- Designed for retrofit and new installations
- Supports real-time energy usage tracking and load management
- Compatible with Schneider Electric/Clipsal energy management systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with energy monitoring systems and AS/NZS 3000 wiring rules.
Applications
- Commercial and industrial electrical distribution boards
- Data centers and server rooms
- Facilities management for energy monitoring
- Panelboard and switchboard energy sub-metering
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy usage analysis to support energy efficiency initiatives
- Facilitates load balancing and demand reduction, lowering overall energy consumption
- Supports compliance with green building and sustainability standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal BCPM Power Monitoring Basic Board with 60 Split Core CTs (SCHBCPMSCC60S) is available for immediate purchase. Ideal for commercial and industrial energy monitoring applications.
