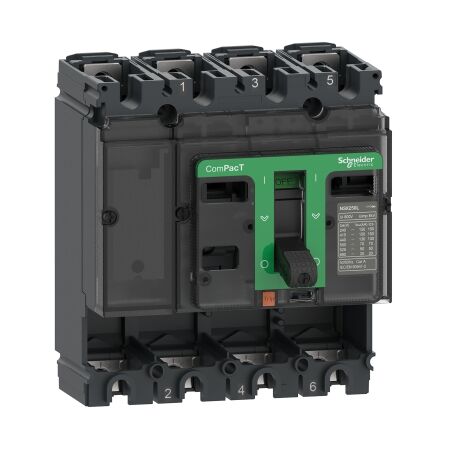

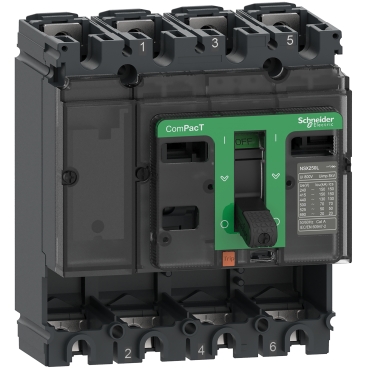

Basic Frame NSX250B Circuit Breaker | 25kA Breaking Capacity | 4 Pole Configuration | Rated 250A | @Pack of 1 | by Clipsal
The Basic Frame NSX250B Circuit Breaker is designed for robust electrical distribution, featuring a 25kA breaking capacity and a 4 pole configuration for three-phase and neutral protection. Ideal for commercial and industrial applications, this 250A rated circuit breaker ensures reliable circuit protection and easy integration of accessories, making it a perfect choice for main and sub-main switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Basic Frame NSX250B Circuit Breaker | 25kA Breaking Capacity | 4 Pole Configuration | Rated 250A | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25B4
Alternatively Known As: NSX250B circuit breaker, ComPacT NSX250B 4 pole, 250A MCCB, Schneider NSX250B frame, SCHC25B4
Technical Specifications
- Frame type: ComPacT NSX250B
- Breaking capacity: 25kA at 415VAC 50/60 Hz
- Number of poles: 4
- Rated current: 250A
- Trip unit: Not included (to be ordered separately)
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- ComPacT NSX250B basic frame circuit breaker
- 25kA breaking capacity at 415VAC 50/60 Hz
- 4 pole configuration for three-phase and neutral protection
- Rated current: 250A
- Modular design allows for easy integration of accessories
- Without trip unit (trip unit to be ordered separately)
- Robust and compact construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Panelboards and motor control centers
- Protection of electrical circuits in large buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by enabling precise circuit protection
- Designed for long service life, reducing replacement frequency and waste
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal Basic Frame NSX250B 25kA AC 4P 250A (SCHC25B4) is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
